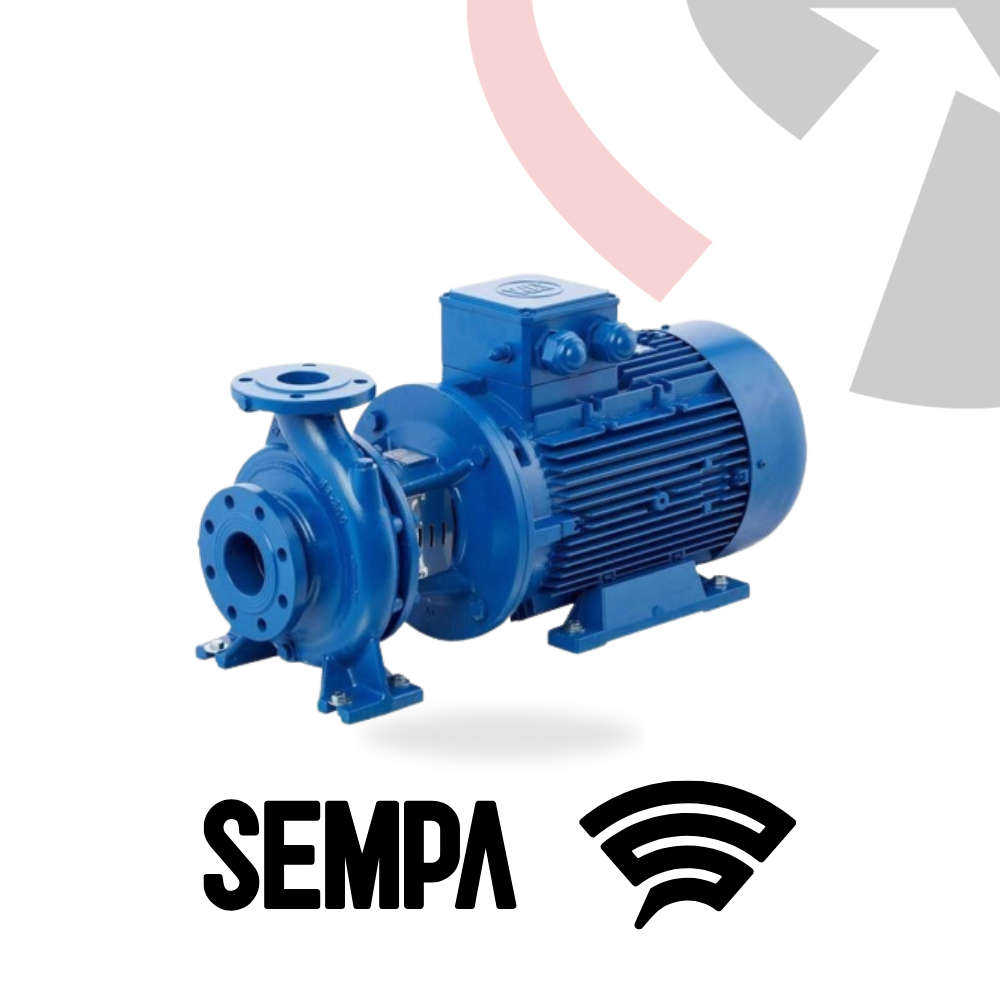

TKF-M Series Monoblock Sempa Pumps

Name: TKF-M Series Monoblock Sempa Pumps
Brand: Sempa Pumps
Availability: InStock

Price on Request | Free Delivery

SKU:

Performance

The SEMPA TKF-M Series is the most compact monoblock pump range in the SEMPA portfolio. Designed for high speed operation up to 2900 RPM, these pumps deliver strong hydraulic performance in a small footprint. With heads up to 154 mm, the TKF-M range is ideal for light duty industrial use, building services, HVAC, irrigation and general water transfer applications.

Applications

Agricultural irrigation and drainage
Building services and water circulation
Water treatment and pressurisation systems
Heating, ventilation and air conditioning (HVAC)
Marine installations
Food and beverage processing

Pump Design Features

Horizontal, volute casing, single stage, end suction monoblock centrifugal pump
Closed impeller design for reliable performance
Built to TS EN 733 dimensional standards
Designed in accordance with EU 547/2012 efficiency requirements
Suction and discharge flanges to TS EN 1092-2 PN 16
Steel or stainless steel body versions compatible with TS EN 1092-1 PN 16
ANSI/ASME flange versions available on request
High efficiency electric motors to IEC frame sizes
Impellers dynamically or statically balanced to ISO 1940 Class 6.3
Axial forces balanced using impeller balancing hole system
Clockwise rotation when viewed from the motor end
Compact and lightweight compared with standard centrifugal pumps
Optional wear rings and shaft sleeves available
Pump shaft coupled directly to the motor shaft using rigid coupling
Axial and radial loads supported by motor bearings

In Stock Models

S20000003 – TKF-M 32-125/2.2 (2.2 kW, 2900 rpm, 147 mm)
S20000004 – TKF-M 32-125/3.0 (3.0 kW, 2900 rpm, 154 mm)
S20000009 – TKF-M 32-200/5.5 (5.5 kW, 2900 rpm, 183 mm)
S20000015 – TKF-M 40-125/2.2 (2.2 kW, 2900 rpm, 124 mm)
S20000016 – TKF-M 40-125/3.0 (3.0 kW, 2900 rpm, 137 mm)
S20000020 – TKF-M 40-160/5.5 (5.5 kW, 2900 rpm, 165 mm)
S20000023 – TKF-M 40-200/7.5 (7.5 kW, 2900 rpm, 178 mm)
S20000031 – TKF-M 50-125/3.0 (3.0 kW, 2900 rpm, 128 mm)
S20000032 – TKF-M 50-125/4.0 (4.0 kW, 2900 rpm, 140 mm)
S20000035 – TKF-M 50-160/5.5 (5.5 kW, 2900 rpm, 150 mm)
S20000036 – TKF-M 50-160/7.5 (7.5 kW, 2900 rpm, 165 mm)
S20000039 – TKF-M 50-200/15.0 (15 kW, 2900 rpm, 197 mm)
S20000046 – TKF-M 65-125/4.0 (4.0 kW, 2900 rpm, 123 mm)
S20000047 – TKF-M 65-125/5.5 (5.5 kW, 2900 rpm, 137 mm)
S20000048 – TKF-M 65-125/7.5 (7.5 kW, 2900 rpm, 150 mm)
S20000050 – TKF-M 65-160/11.0 (11 kW, 2900 rpm, 160 mm)
S20000051 – TKF-M 65-160/15.0 (15 kW, 2900 rpm, 175 mm)
S20000062 – TKF-M 80-160/11.0 (11 kW, 2900 rpm, 152 mm)
S20000063 – TKF-M 80-160/15.0 (15 kW, 2900 rpm, 165 mm)

Additional Information

Full technical documentation and performance curves can be viewed on the official SEMPA website: https://sempapompa.com/en/urun/tkf-m-serisi-monoblok-pompalar
