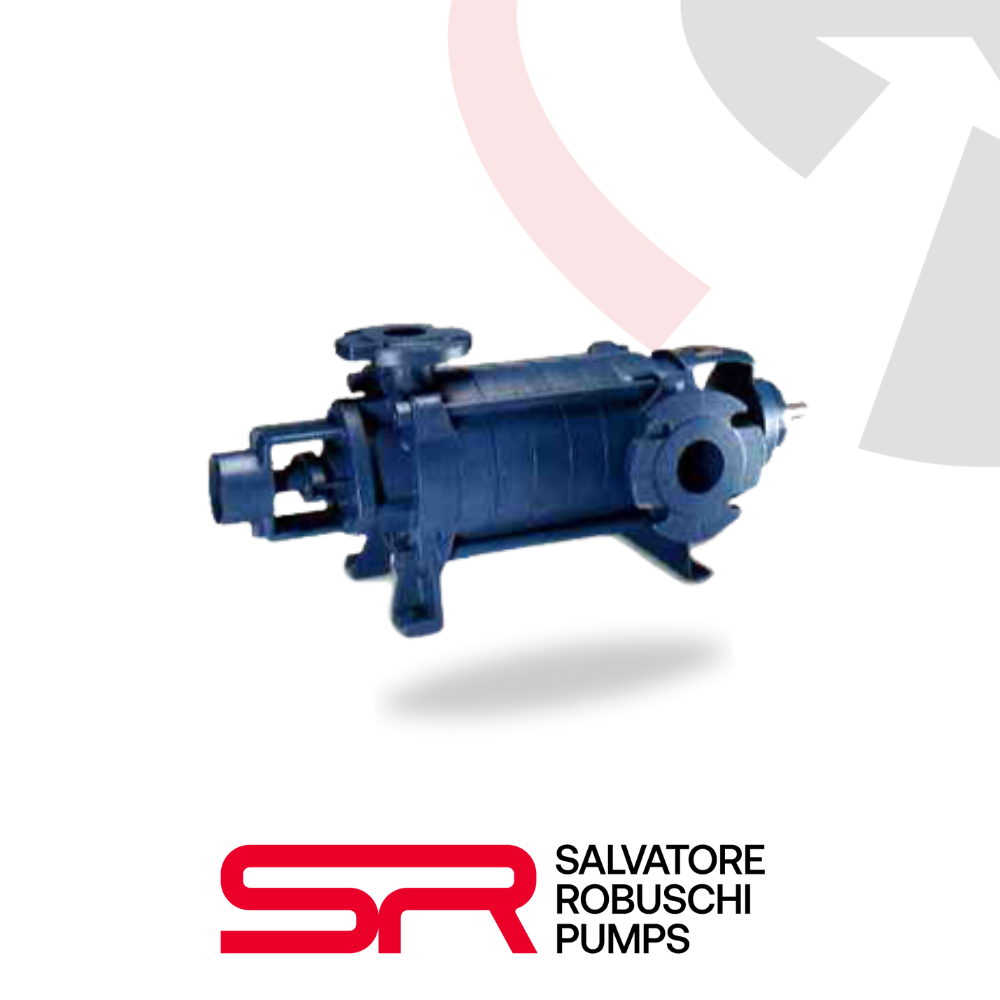

TS pumps are high-efficiency multistage centrifugal pumps with closed impellers, designed to handle a wide range of clean or slightly contaminated liquids. These pumps are perfect for applications that require high pressure, such as boiler feeding, fire-fighting systems, autoclaves, and irrigation. Available in discharge sizes from DN 32 to DN 50, TS pumps are engineered for exceptional performance and long-lasting reliability.
Use
TS pumps are ideal for a variety of applications, including boilers feeding, fire-fighting plants, autoclaves, water supply systems, irrigation, washing plants, and pumping hydrocarbons. They are commonly used in industries that require high pressures for liquid transfer, offering reliable performance even under demanding conditions.
Technical Specifications
Specification
Value
Maximum Flow Rate
45 m³/h
Maximum Head
300 mwc
Maximum Pressure
30 BAR
Maximum Temperature
140°C
Materials
Standard: Casing and diffusers made in GJL250 Cast Iron, shaft in AISI 420, bearing bushes in bronze.
On request: AISI 316 shaft and special bearing bushes.
Hydraulic

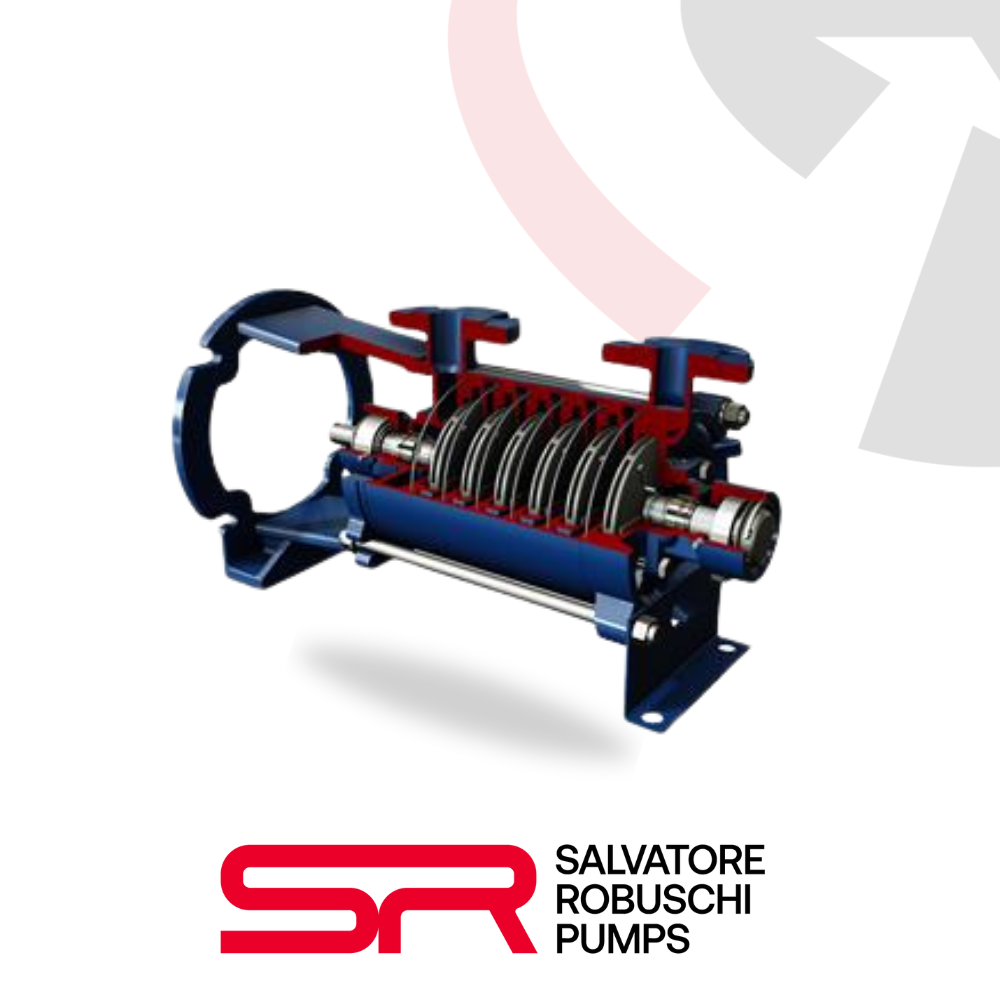

Closed impeller
Unions
Flange (Suction): PN 16
Flange (Discharge): PN 40
Construction Versions

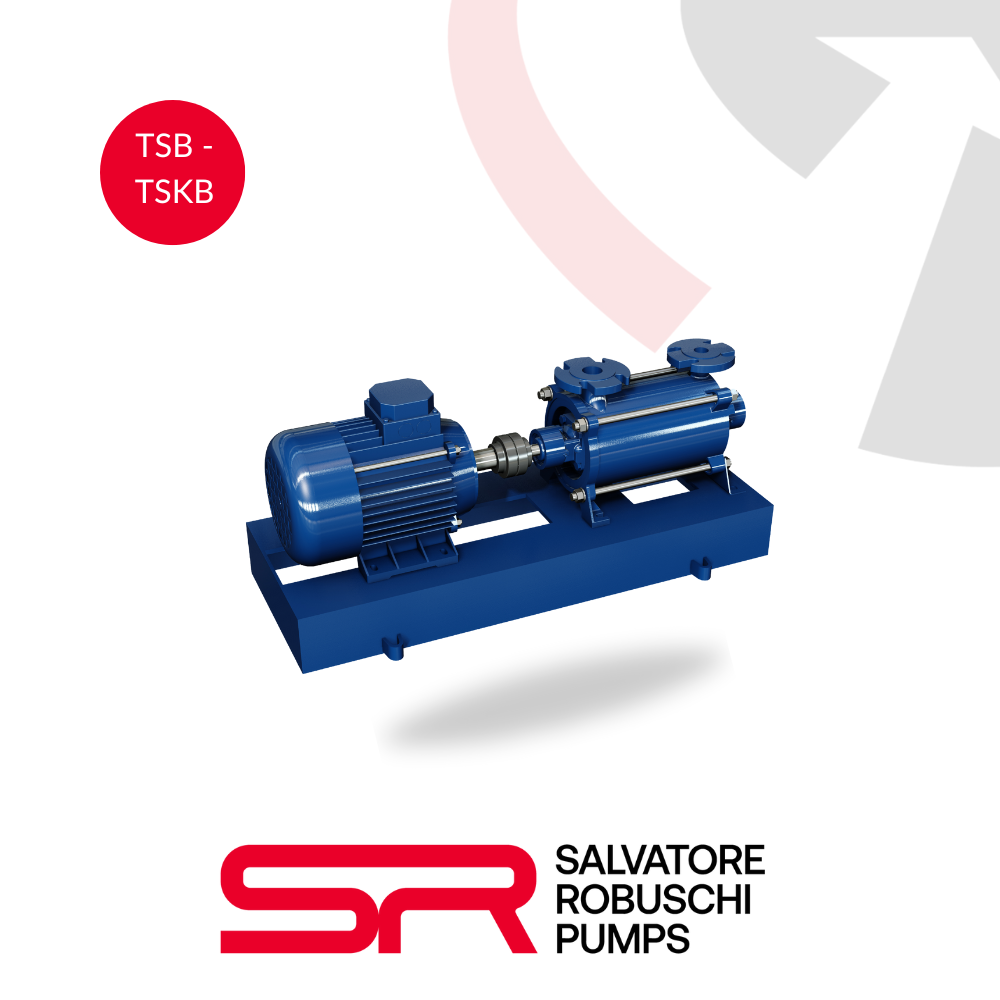

TSB - TSKB: Independent frame with oil lubricated bearings, with ball bearing and bearing bush (TSB) or with double bearing (TSKB).

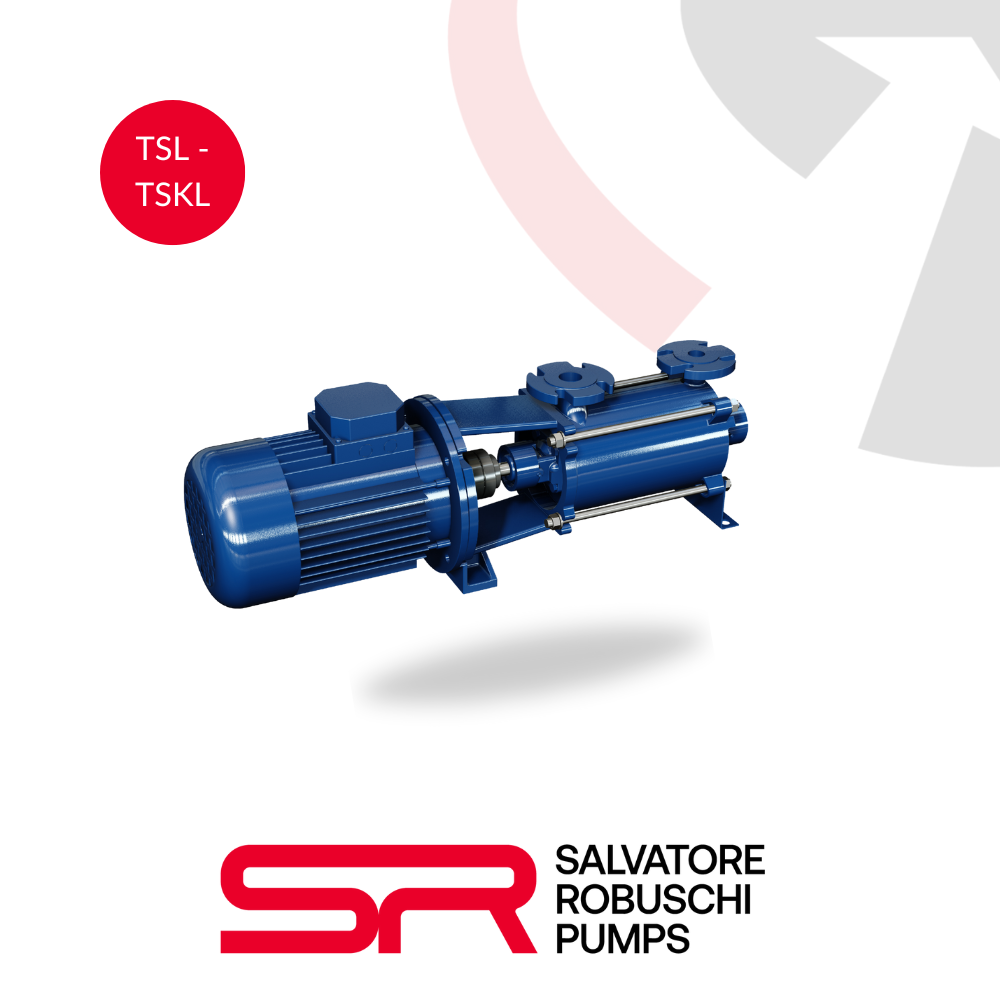

TSL - TSKL: Independent frame with oil lubricated bearings with lantern for coupling to flanged motors, with ball bearing and bearing bush (TSL) or with double bearing (TSKL).
