Cantilever Pumps - Salvatore Robuschi

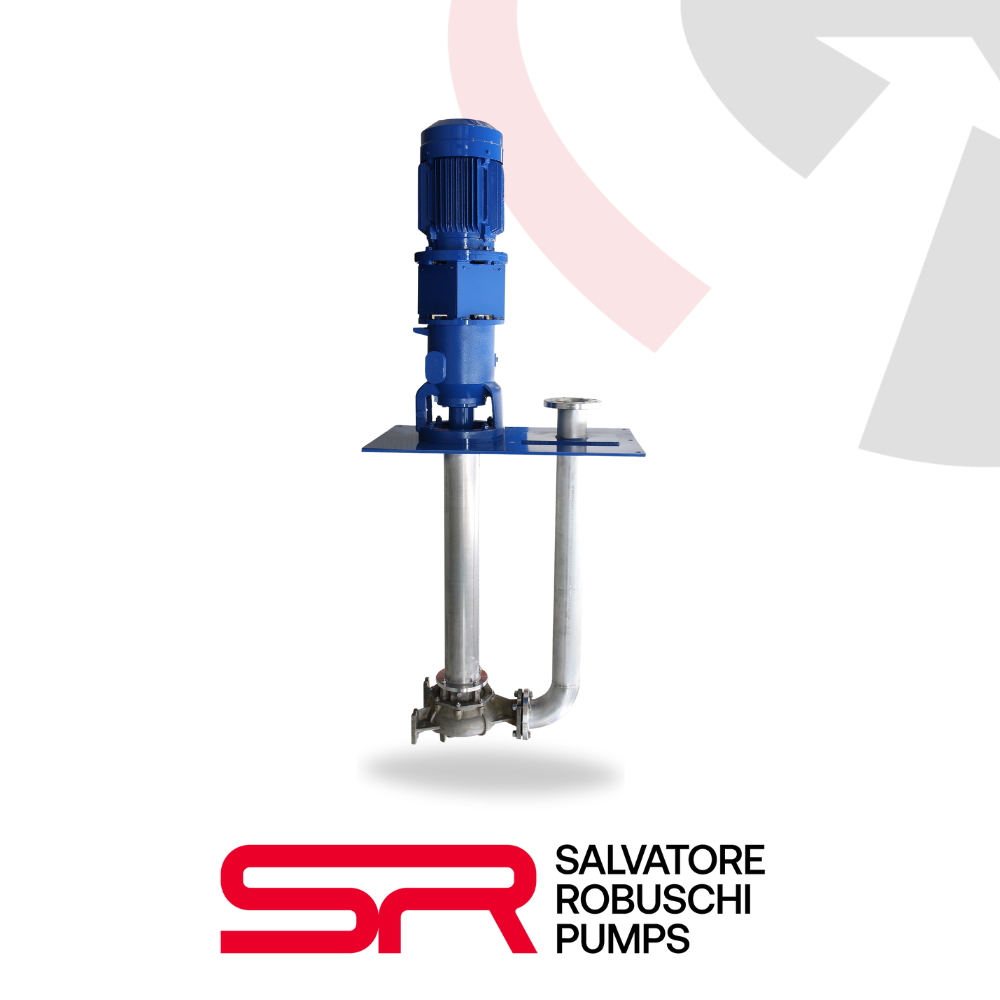

The Cantilever Pumps from Salvatore Robuschi are designed for handling sludges, slurries, and liquids containing large or long solids. These vertical pumps are ideal for applications such as drainage sumps, oily water sumps, tank transfer, food processing, ground water development, irrigation, heavy oil handling, oil sands, shale processing, paper stock, sewage collection, and slurry transfer.

Construction & Features

• The pump body is immersed in the liquid while the motor is mounted above the mounting plate, keeping it away from corrosive exposure.
• Heavy-duty ball bearings with grease fittings, located above the mounting plate for easy maintenance.
• No bearings in the liquid, no seals or bearing bushes, ensuring reliable operation with reduced maintenance costs.
• Capable of running dry without damage, ensuring long-term durability and cost efficiency.
• Customizable mounting plate shape, discharge flange position, and column length to fit sump or tank configurations.
• Optional suction strainer and suction extension available.
• PTFE lip seal available for vapor-proof construction.

Technical Specifications

Installation Options

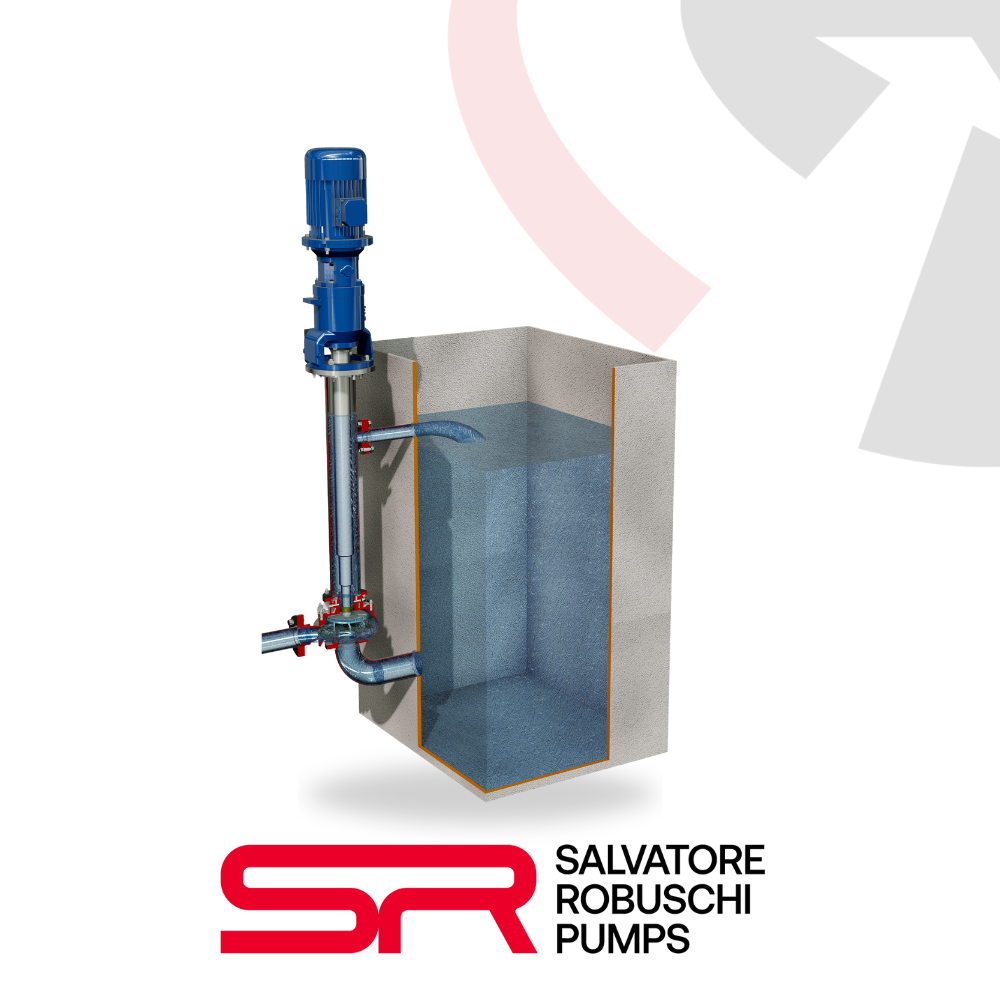

Typical Installation

The Salvatore Robuschi Cantilever Pump is installed at the top of the sump or tank and operates without level controls. The pump runs efficiently when the liquid level is above the "priming holes," but if the level drops below the suction port, it will run dry. It will restart operation when the liquid level returns to the priming holes.

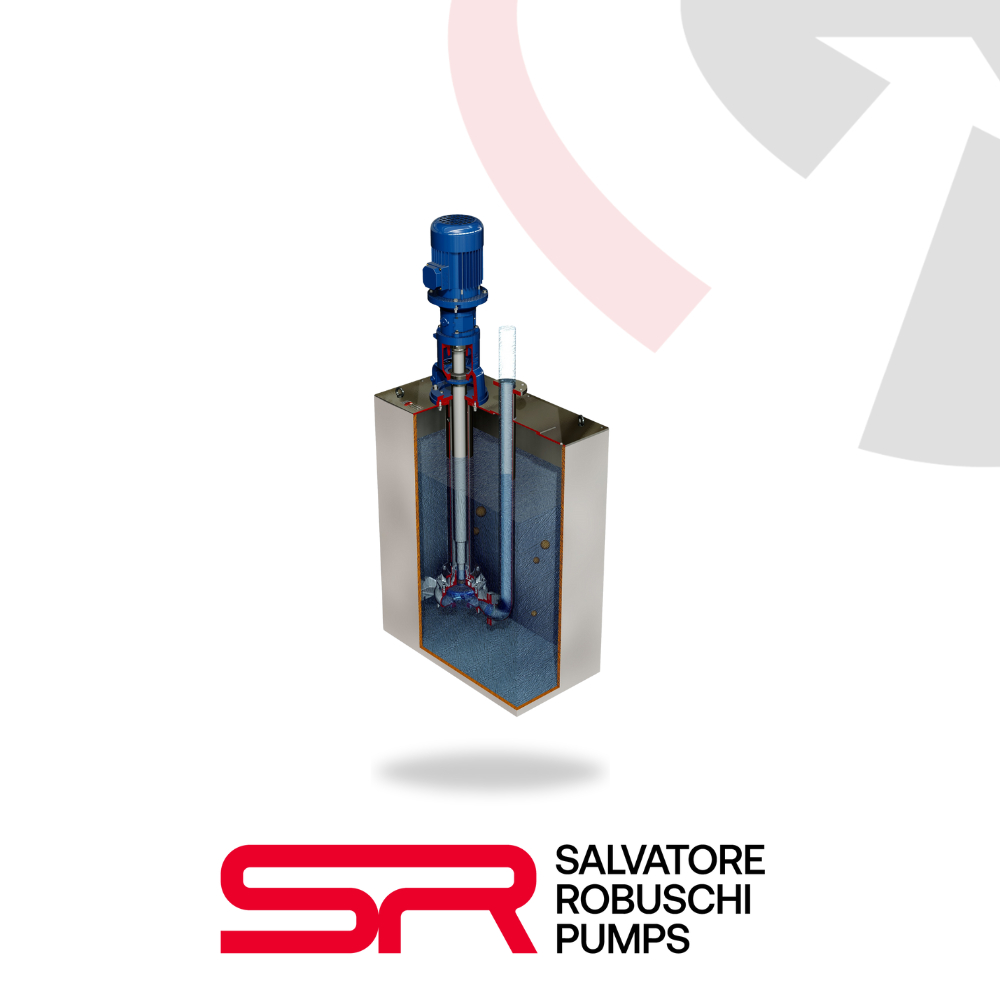

Installation with Suction Extension

This setup allows the pump to empty tanks up to 5 meters below the suction port. Once the liquid level is below the end of the suction extension, the pump will be unprimed and run dry until the liquid level rises again.

External Installation

For high-temperature applications (up to 300°C) with suspended solids, the Salvatore Robuschi Cantilever Pump can be installed externally beside a sump or tank. When the liquid level inside the tank is above the pump casing, it can operate normally. However, as soon as the level drops below the suction port, it will run dry.

Why Choose Salvatore Robuschi Cantilever Pumps?

Salvatore Robuschi is a trusted name in industrial pumping solutions, delivering high-performance pumps with precision engineering. The cantilever pump range offers unmatched reliability and efficiency in the most demanding conditions.
