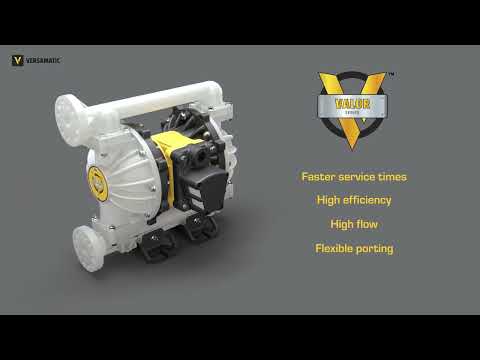

• versamatic video of the valor series showcasing faster service times, high efficiengy, high flow and flexible porting. the video shows the pump on a 3d scale while the balls are showing the patent pending mechinisms with flow rates. external features such as moving feet, whcih clam on easily air flow and ater resistant wtith easy to change ports.
1 5

Versamatic VMV10BPPR0RP100UEA | 1" | Valor (AODD Pump)

Versamatic VMV10BPPR0RP100UEA | 1" | Valor (AODD Pump)

Low stock: 6 left

Versamatic Pumps

VMV10BPPR0RP100UEA

£1,169.00
£1,461.00 £1,169.00
Exclusive Online Price Sold out
Price excludes VAT + (Free UK Delivery)

Delivery Time: 2-5 Days Delivery (In-stock Now)

  • Free UK Delivery
  • Free Returns
  • Manufacturer Warranty
https://youtu.be/4ne5ATXuNqQ

Delivery & Returns Policy

Delivery & Returns

Delivery Information

Our estimated delivery time is 2 to 4 working days (UK Mainland) from dispatch, for items that are in stock. Please note that delivery times may vary depending on the courier service used.

For products that are not in stock or that are supplied by third-party suppliers, delivery times can be longer and will depend on the lead times from those suppliers. We strive to ensure that all products are delivered as quickly as possible, but some suppliers may require more time to process and ship orders.

If you're looking for the most up-to-date availability and delivery time for a specific product, please feel free to reach out to us via the Chat button or contact us directly. Our team will be happy to provide you with the latest information on stock and estimated delivery times.


  • Free delivery Mainland UK Only.
  • For International Delivery - please contact the office.
  • Ex works / Collection available from head office, Dewsbury.
  • Express delivery available.

 *Excludes UK Islands, Republic of Ireland and Scottish Highlands.





Returns


  • 28 day returns policy.



Performance

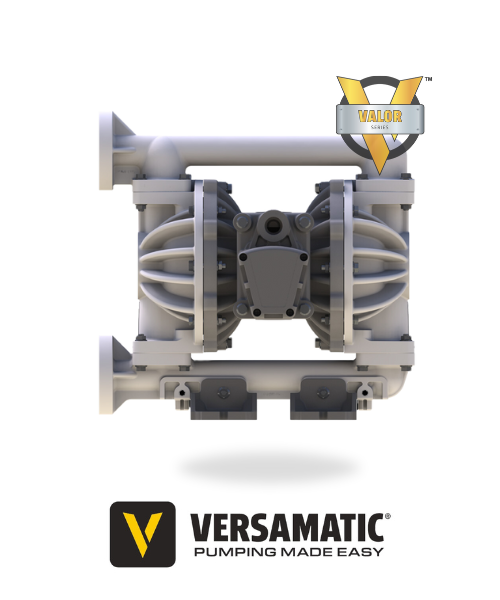

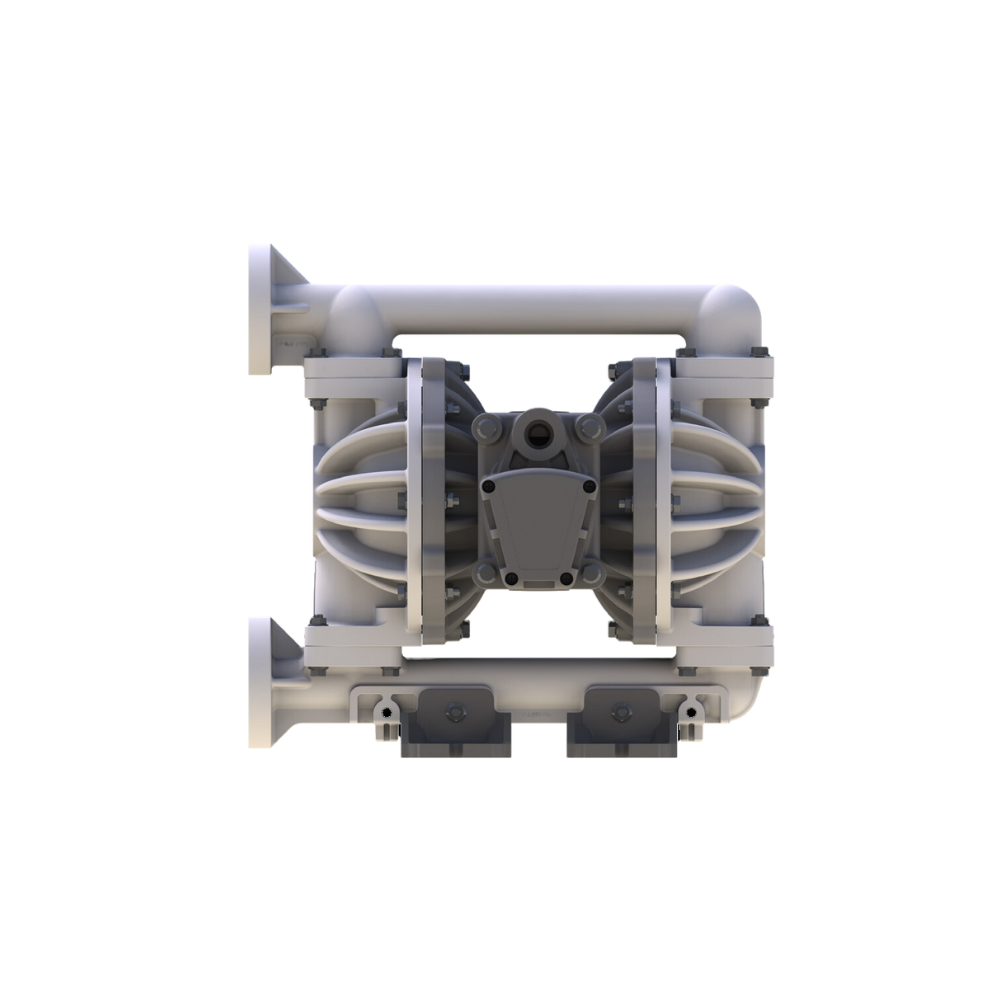

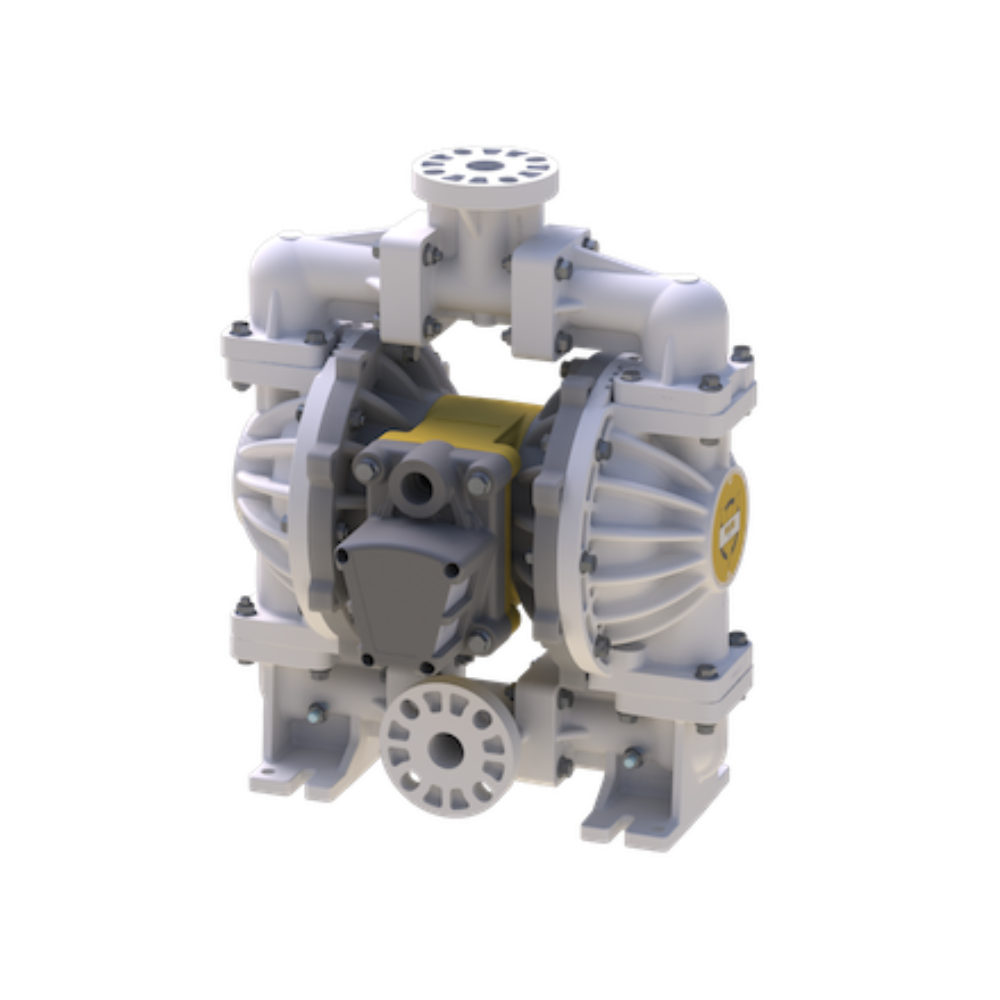

The Versamatic VMV10BPPR0RP100UEA is a 1 inch VALOR air operated double diaphragm pump designed for efficient, reliable transfer of chemicals, process fluids, wastewater and general industrial liquids.

Built with a polypropylene body and Santoprene diaphragms, this stocked VALOR model offers a strong balance of chemical resistance, durability and value. It delivers flow rates up to 238 l/min, with a maximum operating pressure of 8.6 bar, making it suitable for a wide range of process and transfer applications.

Applications

This Versamatic VALOR pump is suitable for use across water treatment, chemical transfer, manufacturing, wastewater handling, OEM systems and general plant applications. The polypropylene construction makes it a practical choice for many water-based chemicals, mild acids, alkalis and process fluids, while Santoprene elastomers provide dependable performance in general-purpose industrial duties.

For applications involving solvents, highly aggressive chemicals or specialist media, please contact our technical sales team before ordering so we can confirm the most suitable material configuration.

Construction

The VMV10BPPR0RP100UEA features a polypropylene wetted body, Santoprene diaphragms, Santoprene check balls and polypropylene seats. The VALOR design has been developed for simple installation, efficient operation and fast servicing, helping reduce downtime in demanding industrial environments.

The pump includes universal 1 inch ANSI/DIN flange connections, giving flexibility for installation into a wide range of pipework systems. The air-side design combines the main and pilot air valve assembly for faster maintenance access compared with traditional AODD pump arrangements.

Key Specifications

  • Model: VMV10BPPR0RP100UEA
  • Pump Type: Air Operated Double Diaphragm Pump
  • Connection Size: 1 inch ANSI/DIN Flange
  • Body Material: Polypropylene
  • Diaphragm Material: Santoprene
  • Ball Material: Santoprene
  • Seat Material: Polypropylene

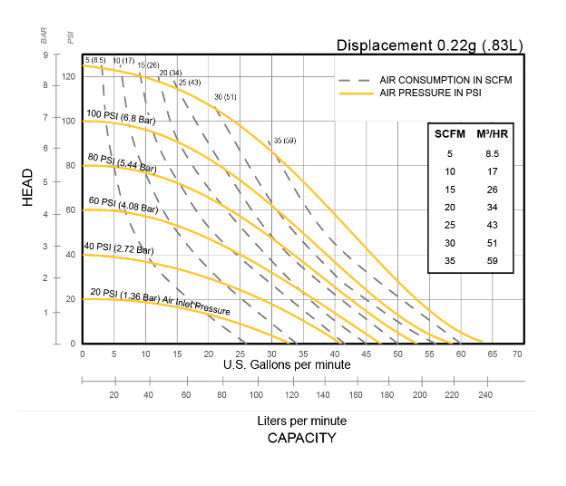

  • Maximum Flow Rate: 238 l/min
  • Maximum Pressure: 8.6 bar / 125 psi
  • Maximum Head: 88 m
  • Maximum Solids Handling: 6 mm
  • Dry Suction Lift: 5.8 m
  • Wet Suction Lift: 9.5 m
  • Air Inlet: 3/4 inch NPT
  • Air Exhaust: 1 inch NPT
  • Maximum Noise Level: 84 dB(A)

Not sure if this is the right material combination for your application?

Not sure if this is the right material combination for your application? View the full Versamatic VALOR comparison table to compare polypropylene, conductive polypropylene and PVDF models, along with available diaphragm and elastomer options.

Delivery

Order the Versamatic VMV10BPPR0RP100UEA 1 inch VALOR AODD Pump from Pumps & Gearboxes Direct with free UK mainland delivery. This model is currently in stock and available for fast dispatch.

This pump replaces code: E1PP6X669C

```

View full details

The Versamatic Valor Series 1" AODD Pump is designed to tackle the most challenging fluid-handling applications, offering a combination of effortless maintenance and high performance. This pump is built with durable materials such as Polypropylene and Conductive Poly ensuring superior chemical resistance and longevity. The Valor's innovative design features a patented, easy-to-service air valve, making it simple to maintain with just a few bolts. Additionally, the anti-rock stability allows for safer, hassle-free servicing without removing the pump from operation.

Additional Features:

  • Industry-leading flow rate and energy efficiency
  • Five-minute air valve servicing compared to the industry standard of 45 minutes
  • Interchangeable components for flexible installation
  • Durable diaphragms designed for extended life
  • ATEX-compliant materials available soon
versamatic-valor-aodd-pump

Key Applications:

  • Fluid Applications
  • Chemical Processing

Not sure what Pump you need?

Try Versamatic Pump Selection Tool:

Versamatic Pump Selector
