| Model | Body Material | Diaphragm | Check Valve Material | Seat Material | Port Option | Delivery | Price | Add |
|---|---|---|---|---|---|---|---|---|
| VMV10BPPB0BP100UEA | Polypropylene | Nitrile (Buna) | Nitrile | Polypropylene | End Ported | Next Day Available | £1,302.00 |
Performance

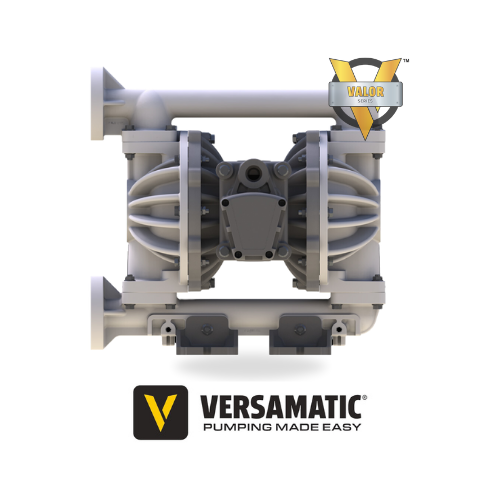

The Versamatic VALOR 1 inch Air Operated Double Diaphragm Pump delivers flow rates up to 238 l/min (63 gpm). Designed for high air efficiency and reliable operation, this industrial AODD pump operates at pressures up to 125 psi (8.6 bar).
The VALOR air system is engineered to provide consistent on and off performance while supporting extended diaphragm and valve service life.
Applications
This plastic AODD pump is suitable for a wide range of chemical transfer, dosing and general industrial applications, including:
- Chemical transfer and dosing
- Acids and caustic chemicals
- Water and wastewater treatment
- Inks, paints, coatings and adhesives
- OEM equipment and process systems
- General industrial fluid transfer
The VALOR range is available in polypropylene, conductive polypropylene and PVDF material options to suit a wide range of process fluids and operating environments.
Construction
The Versamatic VALOR industrial diaphragm pump has been designed to simplify maintenance and reduce downtime.
- Combined main and pilot air valve cartridge
- Air side servicing in approximately five minutes
- Leak-resistant bolted construction
- Standardised wet side bolt sizes

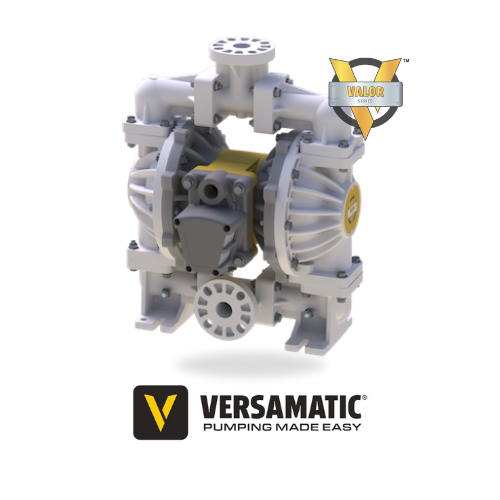

- Centre and end porting options
- Repositionable feet for flexible installation
- Polypropylene, conductive polypropylene and PVDF construction options
Key Specifications
| Maximum Flow | 238 l/min (63 gpm) |
| Maximum Pressure | 125 psi (8.6 bar) |
| Dry Suction Lift | 5.8 m |
| Wet Suction Lift | 9.5 m |
| Maximum Solids Size | 6 mm |
| Fluid Ports | 1 inch ANSI/DIN flange |
| Air Inlet | 3/4 inch NPT |
| Air Exhaust | 1 inch NPT |
| Maximum Noise Level | 84 dB(A) |
Delivery
VMV10BPPB0BP100UEA is currently in stock.
Order the Versamatic VALOR 1 inch AODD pump from Pumps and Gearboxes Direct with free UK mainland delivery and technical support from our experienced pump team.
Replaces previous model code: E1PP2R229C
Is a Plastic AODD Pump Right for Your Application?
A plastic air operated diaphragm pump is often selected for chemical transfer applications because it offers excellent corrosion resistance, lightweight construction and reliable bolted assembly.
Plastic AODD pumps are commonly used for:
- Chemicals, acids and caustics
- Chemical dosing and injection
- Water and wastewater treatment
- Inks, adhesives and coatings
- OEM equipment
- General process fluid transfer
For abrasive slurries, higher pressure duties, prolonged outdoor exposure or applications requiring a grounded pump, a metal or conductive AODD pump may be more suitable.
Material Selection Guide
The VALOR 1 inch range is available in polypropylene, conductive polypropylene and PVDF. Use the guide below as a starting point when selecting your pump materials.
| Body Material | Diaphragm Material | Typical Applications |
|---|---|---|
| Polypropylene | Santoprene | General chemicals, water treatment and mild process fluids |
| Polypropylene | PTFE | Acids, aggressive chemicals and demanding transfer duties |
| Polypropylene | Nitrile | Oils and petroleum-based fluids |
| Polypropylene | EPDM | Water-based chemicals, caustics and some cleaning fluids |
| Conductive Polypropylene | Various | Solvents and flammable fluids requiring static dissipation |
| PVDF | Santoprene | Corrosive chemicals and demanding process applications |
| PVDF | PTFE | Highly aggressive chemicals and corrosive fluids |
| PVDF | FKM | Solvents, aggressive chemicals and higher temperature fluids |
Important: Material suitability depends on the fluid, concentration, temperature and operating conditions. Always verify compatibility against the Versamatic chemical resistance guide before ordering.
Keep Production Moving With the Valor Series AODD Pump
Contact our technical sales team for help selecting the correct polypropylene diaphragm pump, PVDF diaphragm pump or conductive AODD pump for your application.
Or use Versamatics Pump Selection Tool.
