Wilden Pro Flo Series Clamped Aluminium Pump. P2/AAPPP/TSU/TF/ATF/2014 - Instock
Wilden Pro Flo Series Clamped Aluminium Pump. P2/AAPPP/TSU/TF/ATF/2014 - Instock
Wilden
SKU:02-12271 | INSTOCK
Couldn't load pickup availability
Delivery Time: Available Instock
- Free UK Delivery
- Free Returns
- Manufacturer Warranty
Description
Description

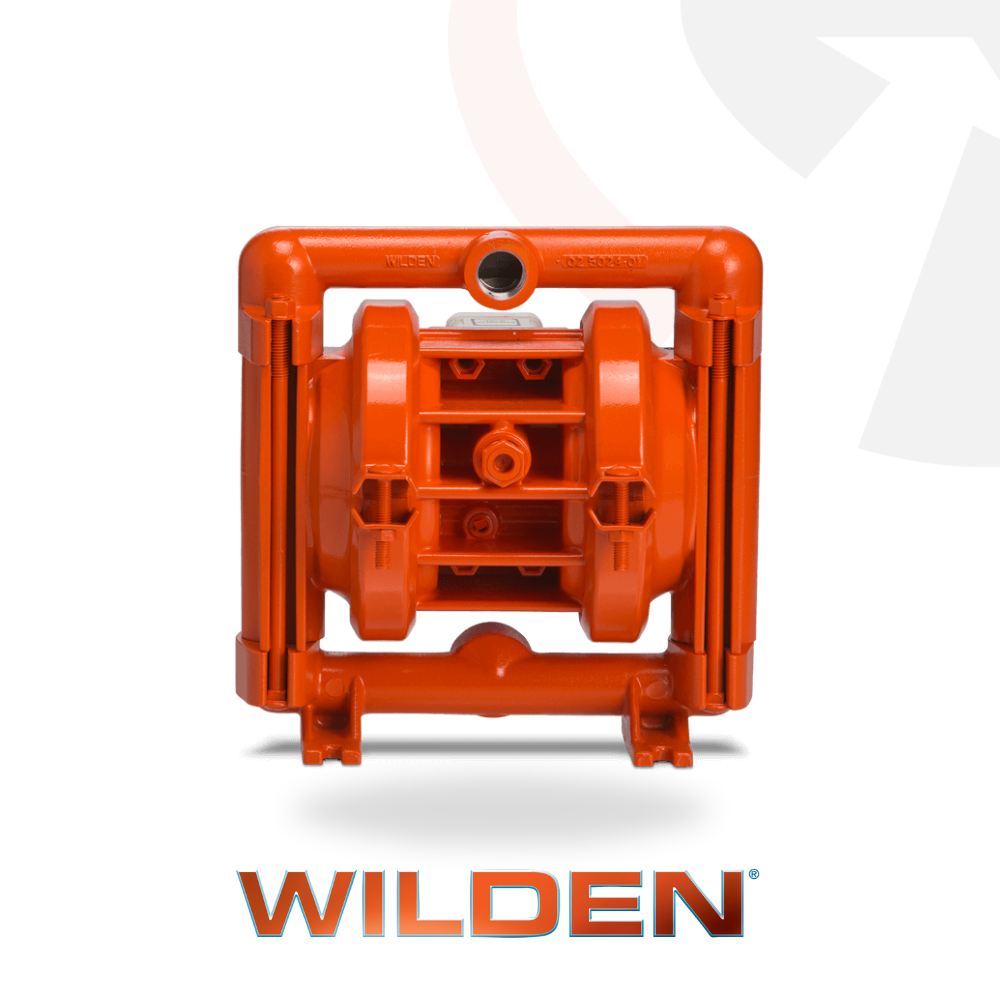

25 mm (1") Pro-Flo® Series Clamped Metal AODD Pump
The 25 mm (1") Pro-Flo Series Clamped Metal Air-Operated Double-Diaphragm (AODD) Pump is designed for industrial applications requiring robust performance and easy maintenance. Featuring the original Jim Wilden air-operated double-diaphragm design, this pump ensures durability with its clamped metal construction, while offering simple installation and quick serviceability with just one tool. The Pro-Flo® Series excels in handling a wide range of fluids with excellent suction lift and flow rate capabilities.
| Specification | Details |
|---|---|
| Air Inlet | 1/4" FNPT |
| Liquid Inlet | 25 mm (1") |
| Liquid Discharge | 19 mm (3/4") |
| Connection Type | NPT/BSPT (Threaded) |
| Max Flow Rate | Rubber €“ 172 lpm (45.5 gpm), TPE €“ 171 lpm (45.2 gpm), Full-Stroke PTFE €“ 167 lpm (44.1 gpm), Reduced-Stroke PTFE €“ 155 lpm (41 gpm) |
| Max Pressure | 8.6 bar (125 psi) |
| Max Diameter Solids | 3.2 mm (1/8") |
| Displacement Per Stroke | Rubber €“ 0.3 L (0.08 gal), TPE €“ 0.3 L (0.08 gal), Full-Stroke PTFE €“ 0.3 L (0.08 gal), Reduced-Stroke PTFE €“ 0.3 L (0.08 gal) |
| Max Suction Lift (Dry) | Rubber €“ 5.2 m (17.0'), TPE €“ 7.6 m (25.0'), Full-Stroke PTFE €“ 4.7 m (15.3'), Reduced-Stroke PTFE €“ 2.8 m (9.1') |
| Max Suction Lift (Wet) | 9.0 m (29.5') |
Key Features and Benefits
- Proven performance with decades of reliability from the original Jim Wilden AODD pump design
- Clamped connections for faster maintenance and ease of service
- Low cost and simple installation for minimal downtime
- Handles a variety of elastomers for different fluid compatibility
- Durable and rugged design for industrial environments
