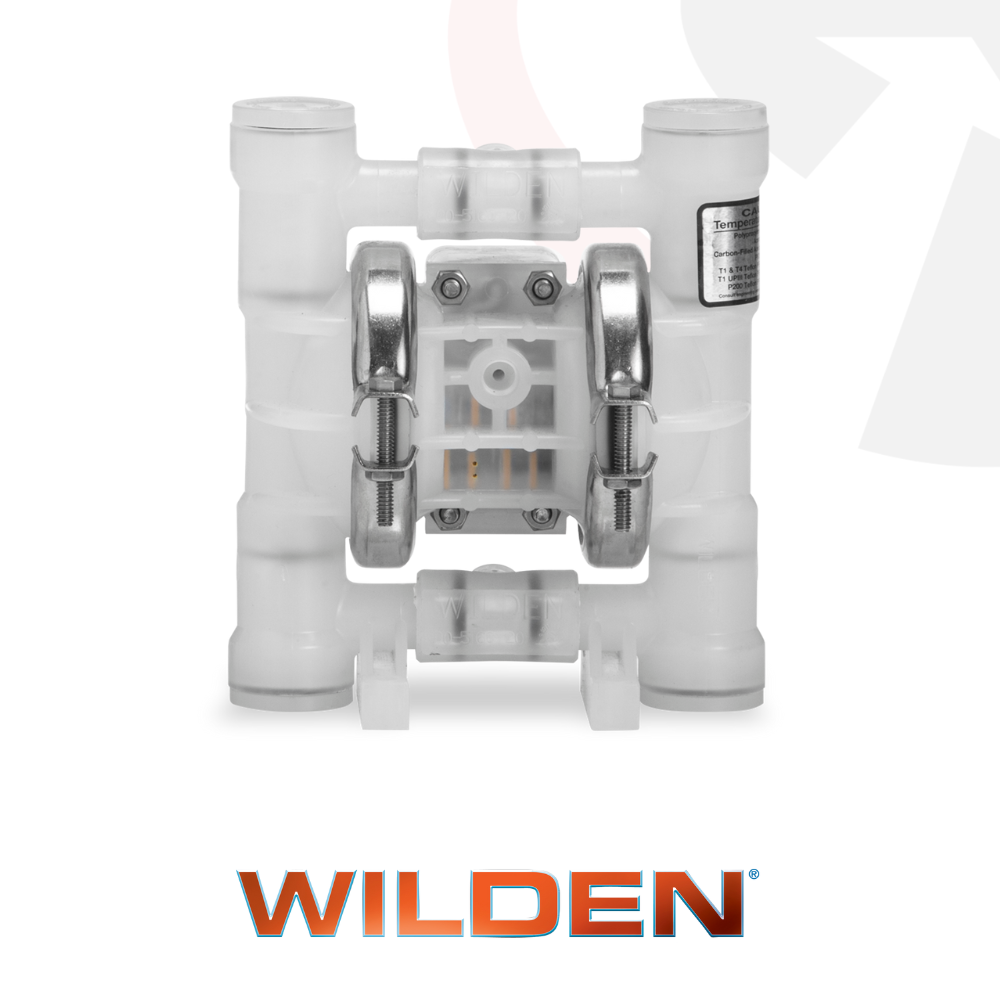

Wilden 6 mm (1/4") Pro-Flo® Series Clamped Plastic AODD Pump - P.025
INSTOCK AND AVAILABLE NOW
Performance
The Wilden 6 mm (1/4") Pro-Flo® Series Clamped Plastic AODD Pump (P.025) is a compact and reliable solution for chemical applications, designed with a rugged clamped construction for ease of maintenance. Part of the Wilden Pro-Flo® Series, this Air-Operated Double-Diaphragm (AODD) pump offers decades of proven performance, delivering efficient fluid transfer in small-scale systems. Its plastic construction ensures corrosion resistance, making the P.025 ideal for industries requiring safe and simple chemical handling.
Applications
- Chemical transfer
- Laboratory applications
- Small-scale dosing systems
- Fluid circulation in chemical processes
Features
- Clamped plastic construction for corrosion resistance and reliable operation in chemical environments.
- FNPT threaded inlet and discharge connections for straightforward installation.
- Rotatable inlet and discharge for flexible setup in various applications.
- Designed for fast maintenance, requiring only a single tool for disassembly and reassembly.
- High suction lift capability:
- Rubber: 2.74 m (9') dry, 9.45 m (31') wet
- TPE: 3.05 m (10') dry, 8.84 m (29') wet
- PTFE: 2.44 m (8') dry, 8.84 m (29') wet
- Maximum flow rate: 18.1 lpm (4.8 gpm) across all elastomer options.
- Handles solids up to 0.4 mm (1/64") for versatile fluid transfer.
- Low cost and simple operation, with a proven design trusted for decades.
Technical Specifications
- Air Inlet: 1/8" FNPT
- Liquid Inlet: 6 mm (1/4")
- Liquid Discharge: 6 mm (1/4")
- Connection Type: NPT (Threaded)
-
Max Suction Lift:
- Rubber: 2.74 m (9') Dry, 9.45 m (31') Wet
- TPE: 3.05 m (10') Dry, 8.84 m (29') Wet
- PTFE: 2.44 m (8') Dry, 8.84 m (29') Wet
-
Max Flow Rate:
- Rubber: 18.1 lpm (4.8 gpm)
- TPE: 18.1 lpm (4.8 gpm)
- PTFE: 18.1 lpm (4.8 gpm)
- Max Pressure: 8.6 bar (125 psi)
- Max Diameter Solids: 0.4 mm (1/64")
-
Displacement Per Stroke:
- Rubber: 0.02 L (0.005 gal)
- TPE: 0.02 L (0.005 gal)
- PTFE: 0.02 L (0.005 gal) (*1 cycle = 2 strokes)
