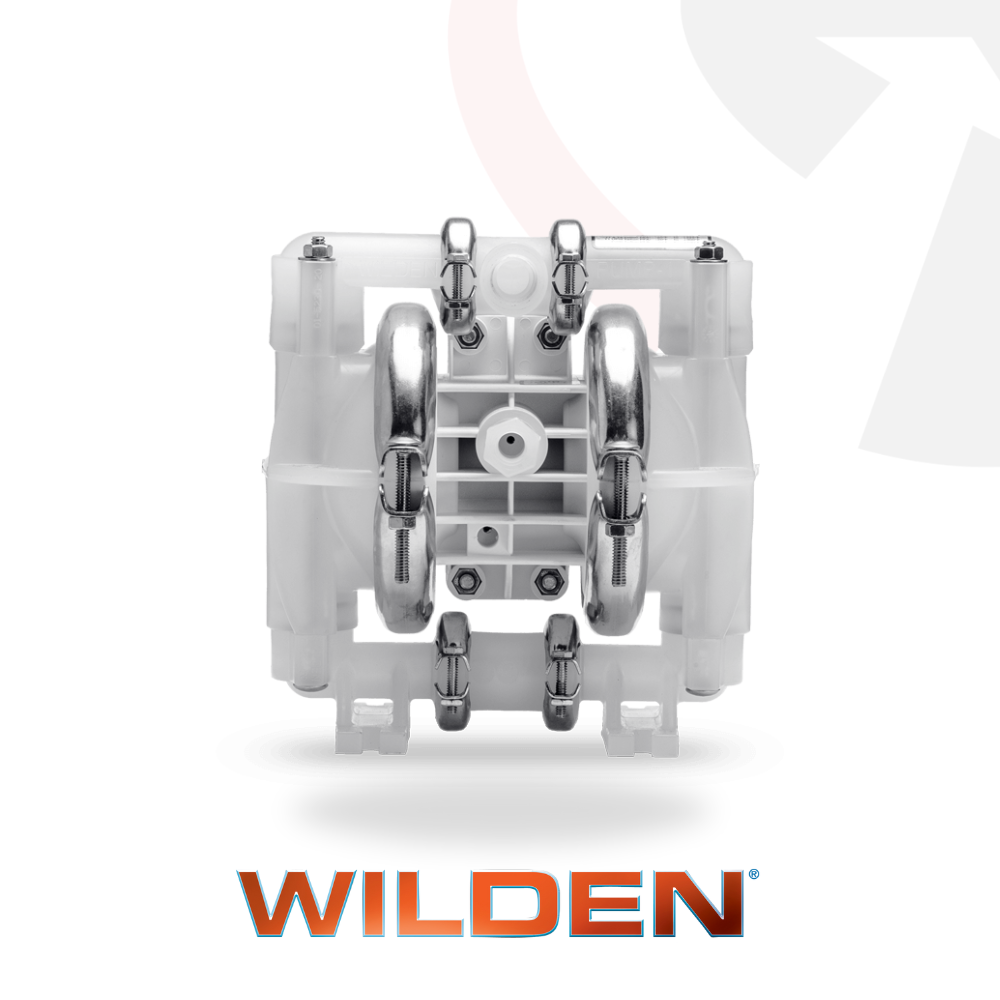

13 mm (1/2") Wilden Pro-Flo® Series Clamped Plastic AODD Pump P1
INSTOCK AND AVAILABLE NOW
Performance
The Wilden Pro-Flo® Series P1 clamped plastic AODD pump delivers robust performance for chemical applications, with flow rates up to 56.8 l/min (3.4 m³/h) and maximum pressure of 8.6 bar. Its versatile design offers impressive suction lift capabilities”up to 6.1 m dry and 9.8 m wet - depending on elastomer type, ensuring efficient fluid transfer across a range of conditions.
Applications
Designed for clean fluids and chemical handling, Its rugged, clamped construction makes it ideal for demanding environments requiring quick maintenance and reliable operation, from chemical processing to fluid transfer tasks. Perfect for chemical processing in pharmaceutical manufacturing, ink and paint transfer in printing industries, or wastewater management in food and beverage production, this pump excels across industries like agriculture (fertiliser dosing) and automotive (fluid transfer).
Construction
Crafted with a durable plastic body and FNPT threaded connections, the Wilden P1 features a simple, clamped design for easy installation and serviceability. With rotatable inlet and discharge ports, it offers flexibility and proven longevity, backed by decades of performance in the field.
Material breakdown for: P1/PPPPP/BNS/BN/KBN
MODEL - PRO-FLO®
WETTEDPATH - PVDF
OUTERPISTON - POLYPROPYLENE
CENTER SECTION - POLYPROPYLENE
AIR VALVE - BUNA-N (Red Dot)
DIAPHRAGMS - BUNA-N (Red Dot)
VALVE SEATS - PVDF
VALVE SEAT O-RING - BUNA-N
Key Specifications:
- Flow rate: Up to 56.8 l/min (3.4 m³/h)
- Max pressure: 8.6 bar (125 psi)
- Suction lift: Up to 6.1 m dry / 9.8 m wet (rubber); 5.8 m dry / 9.8 m wet (TPE); 5.18 m dry / 9.8 m wet (PTFE)
- Liquid inlet/discharge: 13 mm (1/2") NPT threaded
- Max solids diameter: 1.6 mm (1/16")
- Liquid temperature: Dependent on elastomer (consult manual)
Delivery
Order the Wilden Pro-Flo® Series P1 (P1/PPPPP/BNS/BN/KBN) from pumpsandgearboxesdirect.com and benefit from same-day despatch with 3-5 day UK mainland delivery. In-stock and ready to ship!
