Wilden Pro Flo Series Clamped Plastic AODD Pump. P2/PKPPP/WFS/WF/PWF/0400 - Instock
Wilden Pro Flo Series Clamped Plastic AODD Pump. P2/PKPPP/WFS/WF/PWF/0400 - Instock
Wilden
SKU:02-6245 | INSTOCK
Couldn't load pickup availability
Delivery Time: Available Instock
- Free UK Delivery
- Free Returns
- Manufacturer Warranty
Description
Description

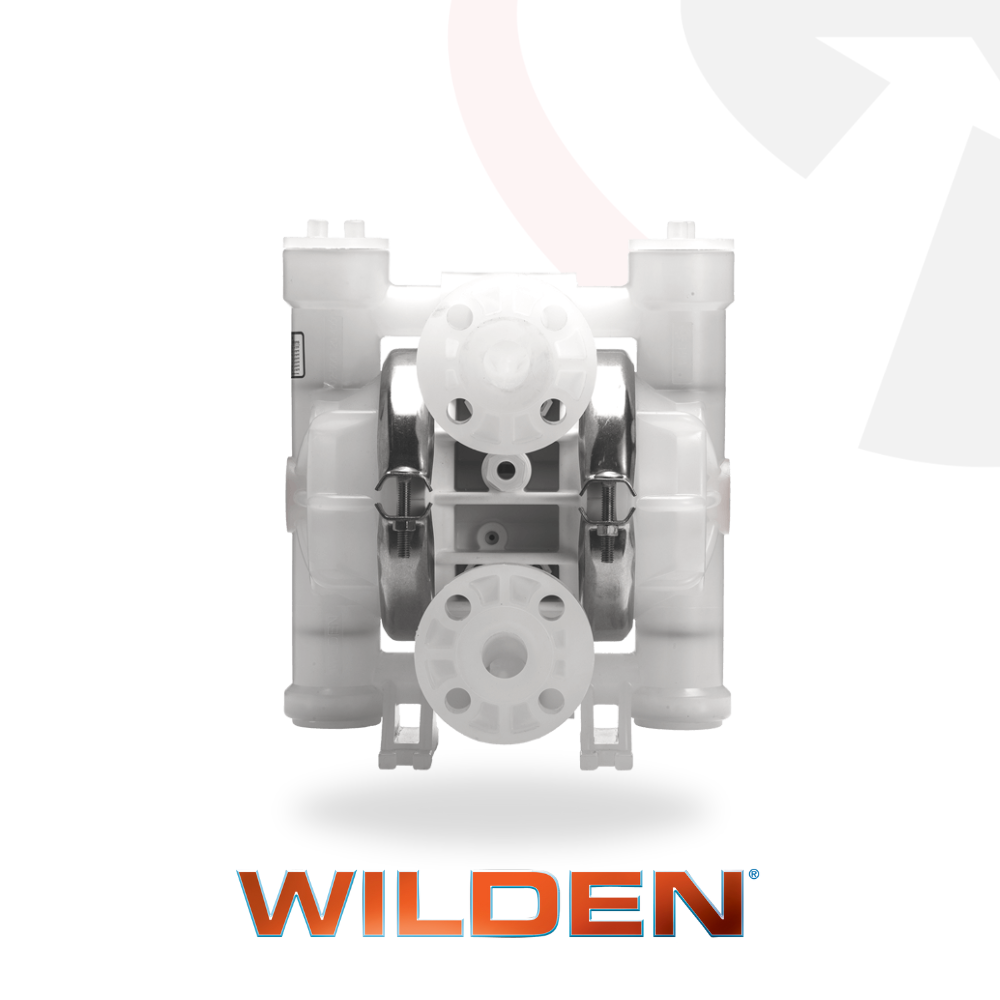

Wilden 25 mm (1") Pro-Flo® Series Clamped Plastic AODD Pump
The Wilden 25 mm (1") Pro-Flo® Series Clamped Plastic Air-Operated Double-Diaphragm (AODD) Pump is specifically designed to handle chemical applications with reliability and efficiency. Its rugged, clamped design ensures ease of maintenance, installation, and operation, making it an ideal choice for demanding environments. Featuring flexible flanged connections and multiple elastomer options, this pump is built to last.
| Specification | Details |
|---|---|
| Air Inlet | 1/4" FNPT |
| Liquid Inlet | 25 mm (1") |
| Liquid Discharge | 25 mm (1") |
| Connection Type | DIN/ANSI (Flanged) |
| Max Flow Rate | Rubber €“ 140 lpm (37 gpm), TPE €“ 140 lpm (37 gpm), Full-Stroke PTFE €“ 139 lpm (36.8 gpm), Reduced-Stroke PTFE €“ 132 lpm (35 gpm) |
| Max Pressure | 8.6 bar (125 psi) |
| Max Diameter Solids | 3.2 mm (1/8") |
| Displacement Per Stroke | Rubber €“ 0.31 L (0.08 gal), TPE €“ 0.39 L (0.10 gal), Full-Stroke PTFE €“ 0.6 L (0.15 gal), Reduced-Stroke PTFE €“ 0.23 L (0.06 gal) |
| Max Suction Lift (Dry) | Rubber €“ 5.5 m (18.0'), TPE €“ 5.5 m (18.0'), Full-Stroke PTFE €“ 4.1 m (13.6'), Reduced-Stroke PTFE €“ 3.4 m (11') |
| Max Suction Lift (Wet) | Rubber €“ 8.8 m (29.0'), TPE €“ 8.8 m (29.0'), Full-Stroke PTFE €“ 8.6 m (28.4'), Reduced-Stroke PTFE €“ 8.8 m (29.0') |
Key Features and Benefits
- DIN and ANSI flanged inlet/discharge liquid connections for compatibility
- Rotatable inlet and discharge for enhanced installation flexibility
- Proven performance with decades of reliable operation
- Clamped connections for quicker maintenance and reduced downtime
- Cost-effective and easy to install
- Simple operation and minimal maintenance requirements
