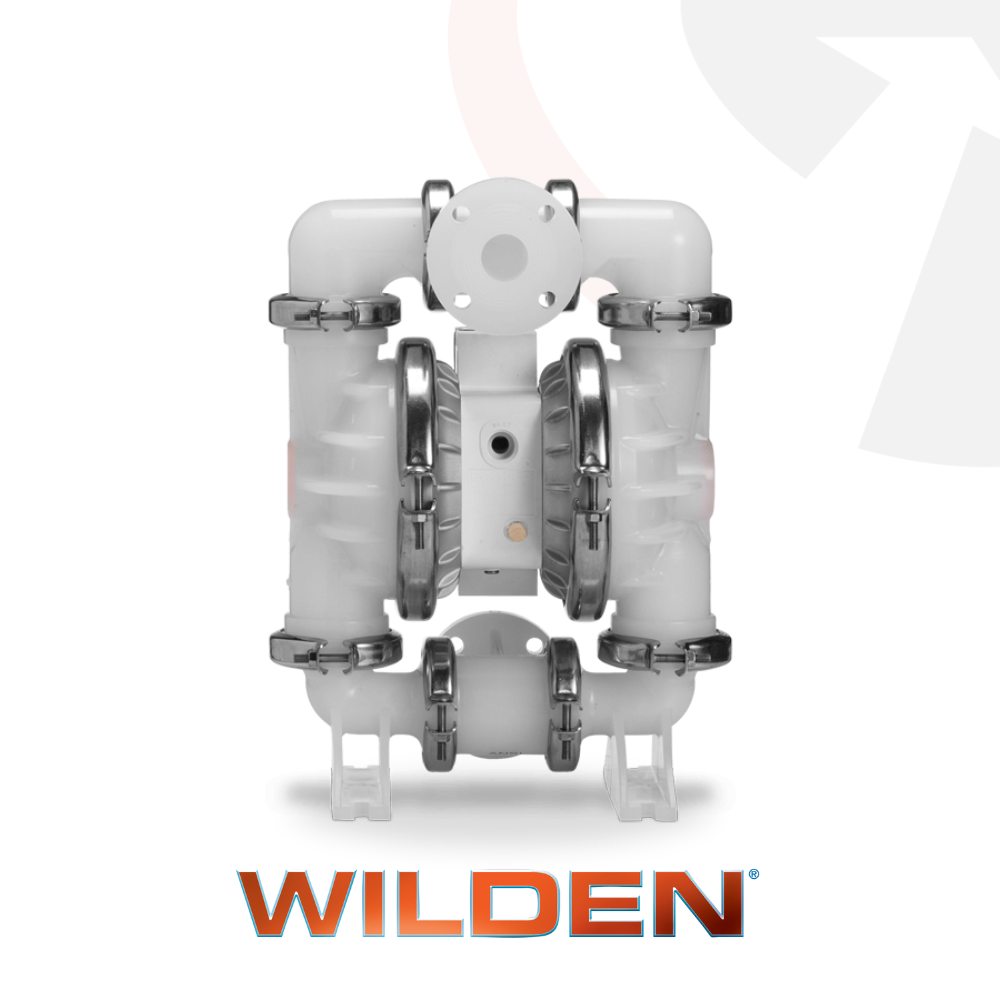

Wilden 38 mm (1-1/2") Pro-Flo® SHIFT Series Clamped Plastic AODD Pump (PS4)
The Wilden 38 mm (1-1/2") Pro-Flo® SHIFT Series Clamped Plastic Air-Operated Double-Diaphragm (AODD) Pump is a robust and versatile solution for demanding chemical and industrial applications. Designed with simplicity, durability, and efficiency in mind, this pump features the energy-saving Pro-Flo® SHIFT ADS and a rugged clamped plastic construction for superior performance.
| Specification | Details |
|---|---|
| Air Inlet | 3/4" FNPT |
| Liquid Inlet | 38 mm (1-1/2") |
| Liquid Discharge | 38 mm (1-1/2") |
| Connection Type | DIN/ANSI (Flanged) |
| Max Suction Lift Capability | Rubber €“ 5.9 m (19.5') Dry, 8.3 m (27.2') Wet EZ-Install TPE €“ 6.2 m (20.4') Dry, 8.3 m (27.2') Wet Full-Stroke PTFE €“ 6.1 m (19.9') Dry, 8.3 m (27.2') Wet |
| Max Flow Rate | Rubber €“ 379 lpm (100 gpm) EZ-Install TPE €“ 378 lpm (100 gpm) Full-Stroke PTFE €“ 368 lpm (98 gpm) |
| Max Pressure | 8.6 bar (125 psi) |
| Max Diameter Solids | 4.8 mm (3/16") |
| Displacement Per Stroke * | Rubber €“ 1.0 L (0.26 gal) EZ-Install TPE €“ 1.0 L (0.26 gal) Full-Stroke PTFE €“ 1.0 L (0.26 gal) * 1 cycle = 2 strokes |
Key Features and Benefits
- DIN and ANSI flanged inlet/discharge liquid connections for secure installation
- Rotatable inlet and discharge for increased flexibility
- Energy-efficient Pro-Flo® SHIFT ADS for reduced air consumption and kilowatt usage
- Greater flow - more gallons pumped per SCFM
- Clamped connections for quick maintenance and reduced downtime
- Low cost and easy installation
- Proven durability with decades of reliable performance
When Jim Wilden introduced the clamped plastic pump series, he incorporated the same reliability and ease of maintenance as the clamped metal pumps, making these pumps an excellent choice for handling chemicals and other challenging applications. Designed for quick serviceability, they can be disassembled and reassembled with a single tool, providing long-term efficiency and convenience.
