| Model | Price | Add |
|---|---|---|
| 02-12257 | XH220/SSSAA/FWS/WF/SWF/0014 (BSPT ) | £6,576.00 | |
| 02-12345 | XH220/SSSAA/TWS/TF/STF | £7,054.00 | |
| 02-12346 | XH220/SSSAA/TWS/TF/STF/0014 (BSPT ) | £7,054.00 | |
| 02-12500 | XH220/WWWAA/FWS/TF/MWF | £4,241.00 | |
| 02-12264 | XH220/WWWAA/FWS/TF/MWF/0014 (BSPT ) | £4,241.00 | |
| 02-12097 | XH220/WWWAA/FWS/WF/MWF/0014 (BSPT ) | £4,183.00 | |
| 02-12413 | XH220/WWWAA/TWS/TF/MTF | £4,662.00 |

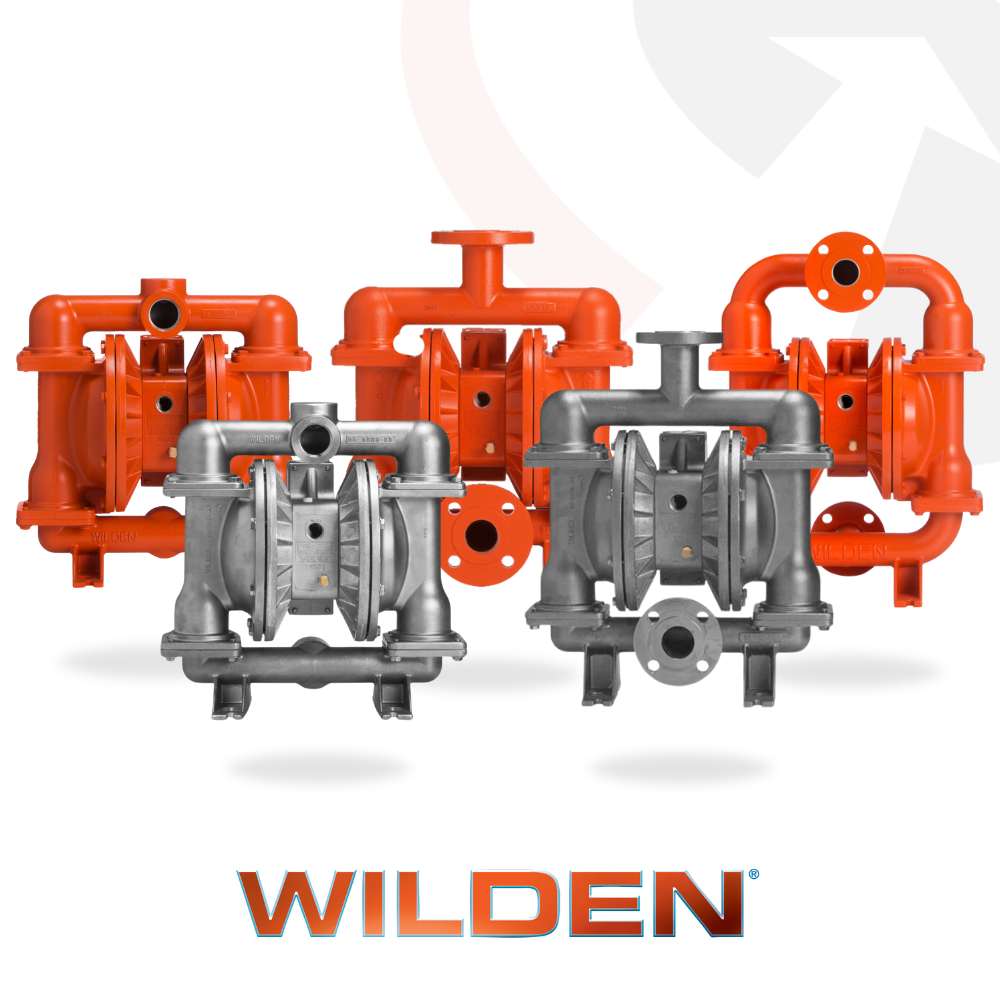

Wilden 25 mm (1") High-Pressure Threaded Bolted Metal AODD Pump - H220 (ATEX Certified)
Description
The Wilden 25 mm (1") High-Pressure Threaded Bolted Metal AODD Pump (H220) is an ATEX-certified, high-pressure solution for demanding industrial applications, featuring a specialty Air Distribution System (ADS) with Duplex technology and a double-acting power piston. This Air-Operated Double-Diaphragm (AODD) pump delivers discharge pressures up to 20.7 bar (300 psi), making it ideal for high-pressure duties like filtration and chemical sludge transfer. Its ATEX certification ensures safe operation in hazardous environments, while its bolted metal construction provides robust durability for handling viscous, solid-laden slurries.
Applications
- Filtration
- Chemical sludge transfer
- Solid-laden slurries
- Viscous product transfer
- Filter press applications
- Hygienic applications in hazardous environments (ATEX)
Features
- ATEX-certified for safe operation in hazardous environments with flammable fluids or explosive atmospheres.
- Bolted metal construction for robust durability in high-pressure industrial applications.
- Specialty ADS with Duplex technology and double-acting power piston, delivering discharge pressures up to 20.7 bar (300 psi).
- NPT or BSPT threaded inlet and discharge connections for secure installation.
- High suction lift capability:
- EZ-Install TPE: 8 m (9.1') dry, 9.0 m (29.5') wet
- Full-Stroke PTFE: 6.1 m (19.9') dry, 8.3 m (27.2') wet
- Maximum flow rate:
- EZ-Install TPE: 94 lpm (25 gpm)
- Full-Stroke PTFE: 597 lpm (158 gpm)
- Handles solids up to 6.4 mm (1/4") for versatile fluid transfer.
- Built-in internal pressure amplifier with limited external piping for a more robust design.
- Ideal for high-pressure duties like filtration, sludge transfer, and viscous product handling.
Technical Specifications
- Air Inlet: 1/2" FNPT
- Liquid Inlet: 25 mm (1")
- Liquid Discharge: 25 mm (1")
- Connection Type: NPT/BSPT (Threaded)
-
Max Suction Lift:
- EZ-Install TPE: 8 m (9.1') Dry, 9.0 m (29.5') Wet
- Full-Stroke PTFE: 6.1 m (19.9') Dry, 8.3 m (27.2') Wet
-
Max Flow Rate:
- EZ-Install TPE: 94 lpm (25 gpm)
- Full-Stroke PTFE: 597 lpm (158 gpm)
- Max Pressure: 6.9 bar (100 psi)
- Max Discharge Pressure: 20.7 bar (300 psi)
- Max Diameter Solids: 6.4 mm (1/4")
-
Displacement Per Stroke:
- EZ-Install TPE: 0.189 L (0.05 gal)
- Full-Stroke PTFE: 0.189 L (0.05 gal) (*1 cycle = 2 strokes)
