XPS8 Pro-Flo SHIFT | Clamped

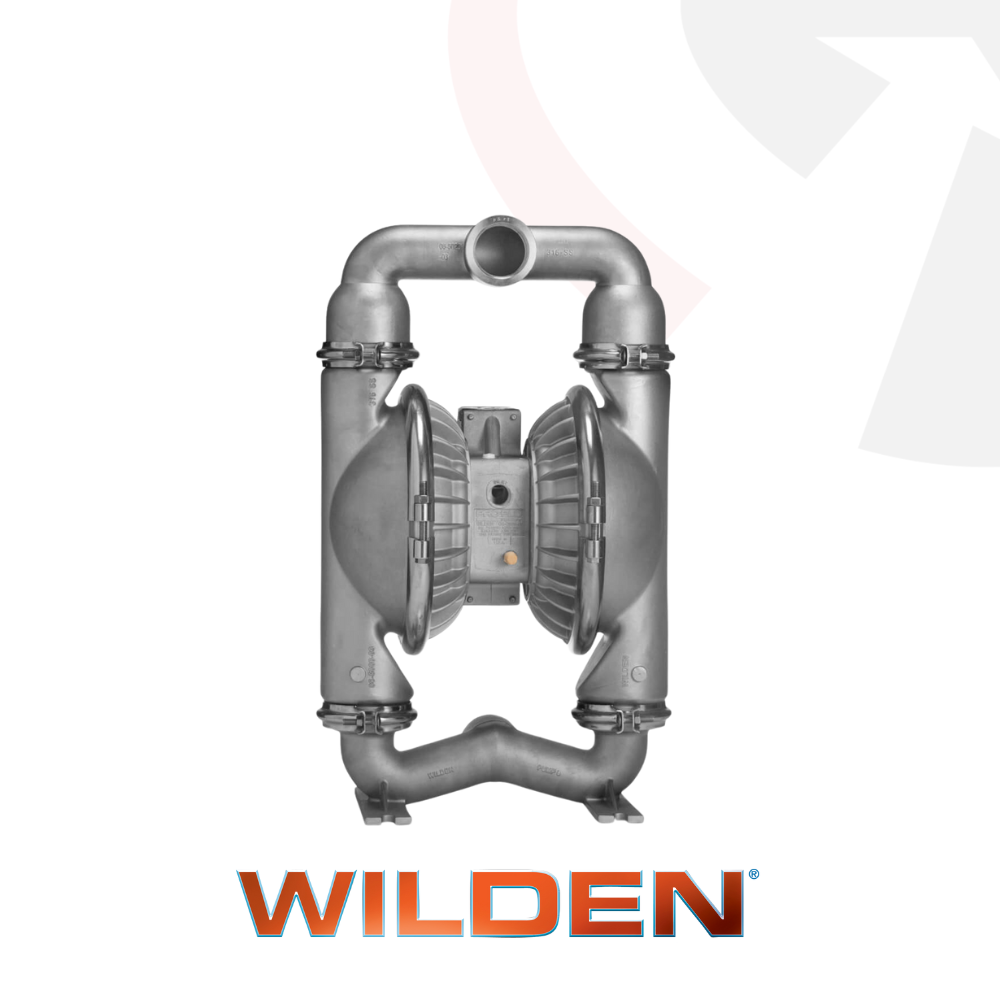

Wilden 76 mm (3") Pro-Flo® SHIFT Series Clamped Aluminium AODD Pump - PS15 (ATEX Certified)

Description
The Wilden 76 mm (3") Pro-Flo® SHIFT Series Clamped Aluminium AODD Pump (PS15) is a high-efficiency, ATEX-certified solution for industrial applications in hazardous environments, featuring the energy-saving Pro-Flo® SHIFT Air Distribution System (ADS). This Air-Operated Double-Diaphragm (AODD) pump optimises air consumption, reduces energy costs by up to 60%, and ensures high flow rates without overfilling the air chamber. Its ATEX certification makes it ideal for safely handling flammable fluids or operating in explosive atmospheres, while its clamped metal construction offers durability and ease of maintenance for demanding industrial settings.

Applications

• Oil and gas applications (ATEX environments)
• Chemical processing in hazardous areas
• Mining and slurry transfer
• Wastewater handling
• General industrial fluid transfer in explosive atmospheres

Features

• ATEX-certified for safe operation in hazardous environments with flammable fluids or explosive atmospheres.
• Clamped metal construction for durability and ease of maintenance in rugged industrial settings.
• Pro-Flo® SHIFT ADS reduces air consumption by up to 60%, lowering energy costs while maintaining flow rates.
• NPT or BSPT threaded inlet and discharge connections for quick and easy installation.
• High suction lift capability:
  • Rubber: 6.6 m (21.6') dry, 8.6 m (28.4') wet
  • EZ-Install TPE: 6.3 m (20.7') dry, 8.6 m (28.4') wet
  • Full-Stroke PTFE: 6.2 m (20.2') dry, 8.6 m (28.4') wet
• Maximum flow rate:
  • Rubber: 927 lpm (245 gpm)
  • EZ-Install TPE: 901 lpm (238 gpm)
  • Full-Stroke PTFE: 916 lpm (242 gpm)
• Handles solids up to 9.5 mm (3/8") for versatile fluid transfer.
• Unbalanced spool design prevents stalling, with minimal moving parts for reduced wear.
• Increased mean time between repair (MTBR) for less downtime and lower maintenance costs.

Technical Specifications

• Air Inlet: 3/4" FNPT
• Liquid Inlet: 76 mm (3")
• Liquid Discharge: 76 mm (3")
• Connection Type: NPT/BSPT (Threaded)
• Max Suction Lift:
  • Rubber: 6.6 m (21.6') Dry, 8.6 m (28.4') Wet
  • EZ-Install TPE: 6.3 m (20.7') Dry, 8.6 m (28.4') Wet
  • Full-Stroke PTFE: 6.2 m (20.2') Dry, 8.6 m (28.4') Wet
• Max Flow Rate:
  • Rubber: 927 lpm (245 gpm)
  • EZ-Install TPE: 901 lpm (238 gpm)
  • Full-Stroke PTFE: 916 lpm (242 gpm)
• Max Pressure: 8.6 bar (125 psi)
• Max Diameter Solids: 9.5 mm (3/8")
• Displacement Per Stroke:
  • Rubber: 5.2 L (1.38 gal)
  • EZ-Install TPE: 5.3 L (1.41 gal)
  • Full-Stroke PTFE: 5.1 L (1.34 gal) (*1 cycle = 2 strokes)

Delivery
Order the Wilden 76 mm (3") Pro-Flo® SHIFT Series Clamped Metal AODD Pump (PS15) from pumpsandgearboxesdirect.com and enjoy free UK mainland delivery.
