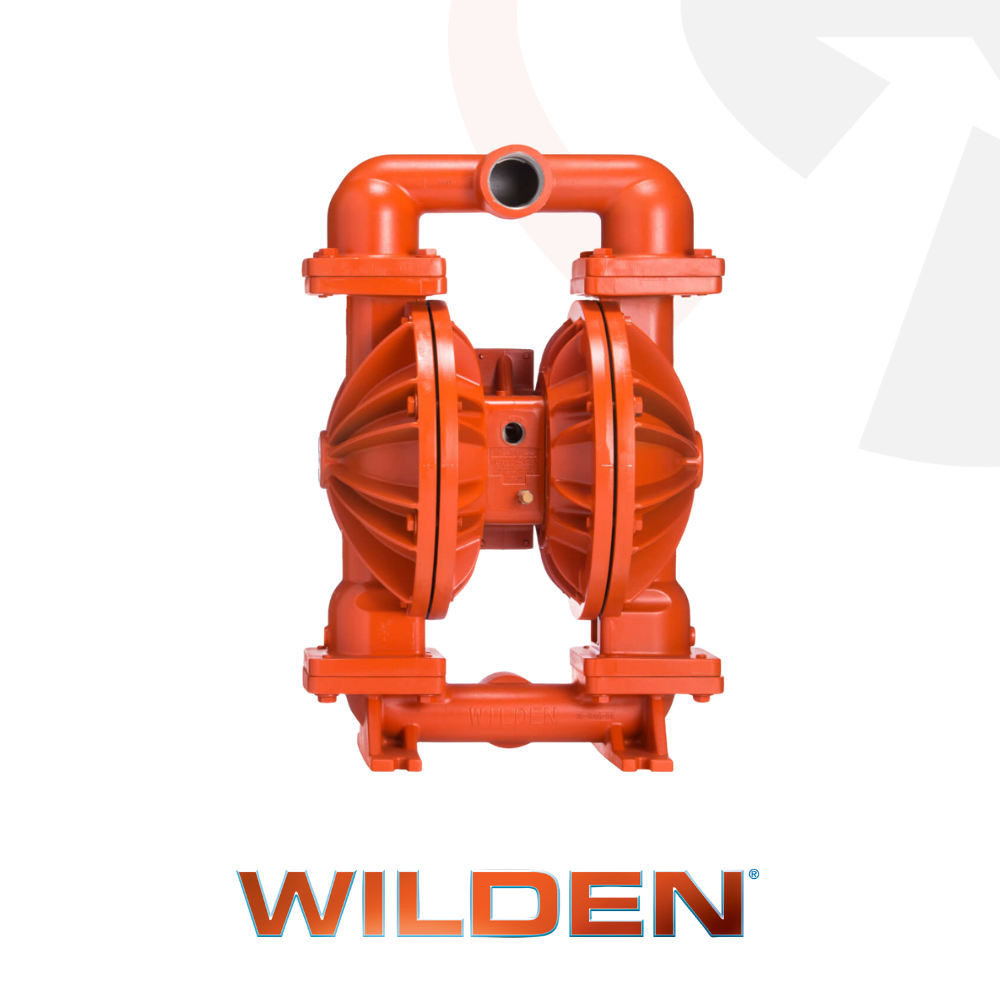

Wilden 51 mm (2") Pro-Flo® SHIFT Series Bolted Metal AODD Pump - PS820/PS830 (Aluminium, ATEX Certified)
Description
The Wilden 51 mm (2") Pro-Flo® SHIFT Series Bolted Metal AODD Pump (PS820/PS830) in aluminium, also known as FIT, is a high-performance, ATEX-certified solution for industrial applications in hazardous environments, featuring the energy-efficient Pro-Flo® SHIFT Air Distribution System (ADS). This Air-Operated Double-Diaphragm (AODD) pump optimises air consumption, reduces energy costs by up to 60%, and delivers up to 35% higher flow rates than competitive models. Its ATEX certification ensures safe operation in explosive atmospheres, while its lightweight aluminium construction and bolted design provide superior containment and easy replacement of Wilden clamped pumps, with options for threaded (PS820) or flanged (PS830) connections.
Applications
- Oil and gas applications (ATEX environments)
- Chemical processing in hazardous areas
- Paint and coatings transfer
- Wastewater handling
- General industrial fluid transfer in explosive atmospheres
Features
- ATEX-certified for safe operation in hazardous environments with flammable fluids or explosive atmospheres.
- Bolted aluminium construction for lightweight durability and superior containment in industrial settings.
- Pro-Flo® SHIFT ADS reduces air consumption by up to 60%, lowering energy costs while maintaining flow rates.
- Connection options: NPT or BSPT threaded (PS820) or DIN/ANSI flanged (PS830) inlet and discharge connections for versatile installation.
- High suction lift capability:
- Rubber: 7.1 m (23.3') dry, 9.0 m (29.5') wet
- EZ-Install TPE: 7.0 m (23.1') dry, 9.0 m (29.5') wet
- Full-Stroke PTFE: 6.6 m (21.8') dry, 9.0 m (29.5') wet
- Maximum flow rate:
- Rubber: 685 lpm (181 gpm)
- EZ-Install TPE: 668 lpm (176 gpm)
- Full-Stroke PTFE: 655 lpm (173 gpm)
- Handles solids up to 6.4 mm (1/4") for versatile fluid transfer.
- Portable and submersible design with wide chemical compatibility.
- Increased mean time between repair (MTBR) for less downtime and lower maintenance costs.
Technical Specifications
- Air Inlet: 3/4" FNPT
- Liquid Inlet: 51 mm (2")
- Liquid Discharge: 51 mm (2")
- Connection Type: NPT/BSPT (Threaded) for PS820; DIN/ANSI (Flanged) for PS830
-
Max Suction Lift:
- Rubber: 7.1 m (23.3') Dry, 9.0 m (29.5') Wet
- EZ-Install TPE: 7.0 m (23.1') Dry, 9.0 m (29.5') Wet
- Full-Stroke PTFE: 6.6 m (21.8') Dry, 9.0 m (29.5') Wet
-
Max Flow Rate:
- Rubber: 685 lpm (181 gpm)
- EZ-Install TPE: 668 lpm (176 gpm)
- Full-Stroke PTFE: 655 lpm (173 gpm)
- Max Pressure: 8.6 bar (125 psi)
- Max Diameter Solids: 6.4 mm (1/4")
-
Displacement Per Stroke:
- Rubber: 2.8 L (0.73 gal)
- EZ-Install TPE: 2.6 L (0.70 gal)
- Full-Stroke PTFE: 2.5 L (0.65 gal) (*1 cycle = 2 strokes)
