Yilmaz Gearboxes

SKU:

Delivery Time: 3-5 Days Delivery (In-stock Now)

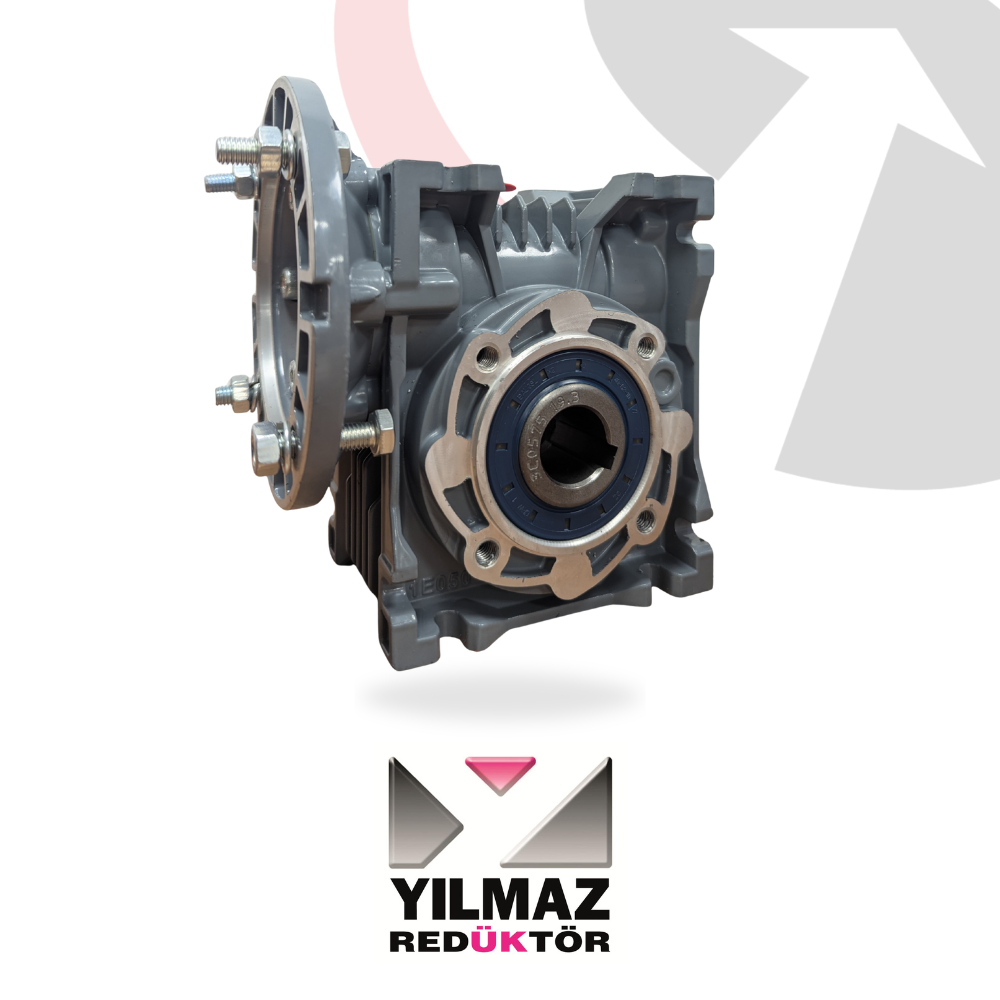

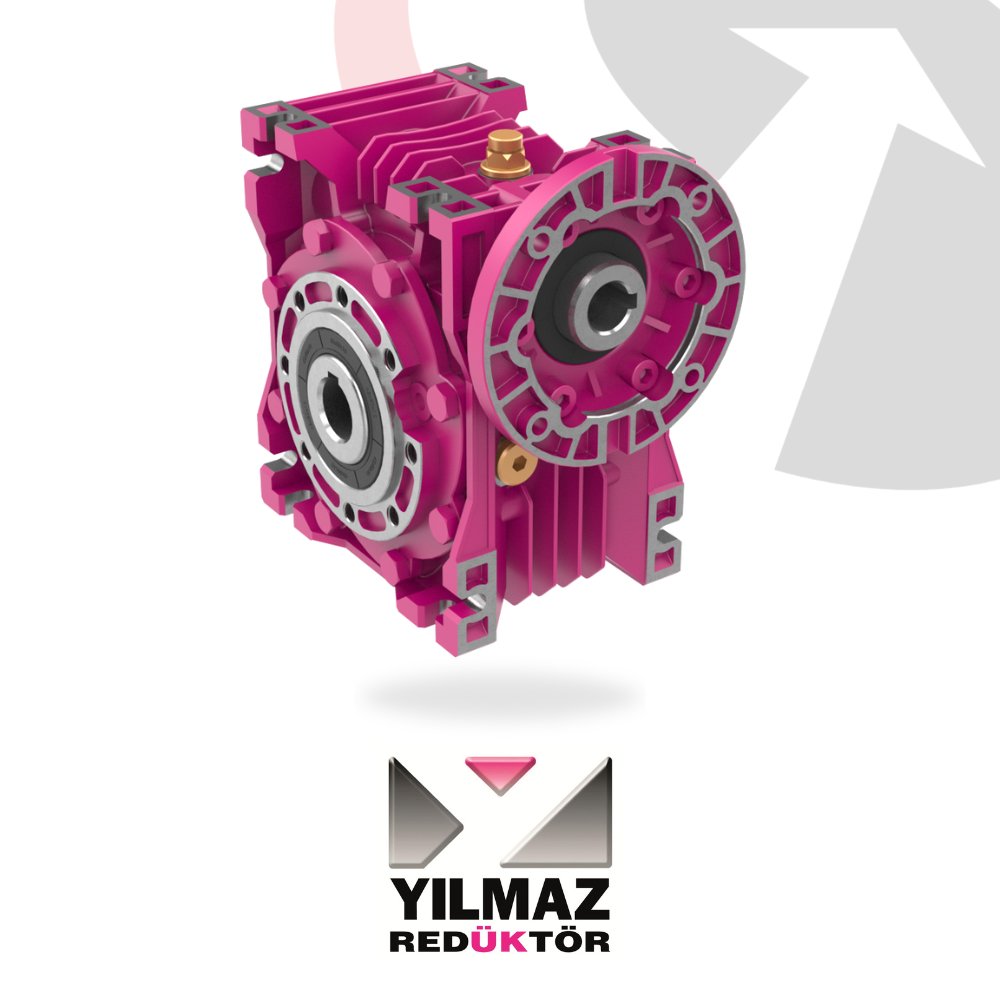

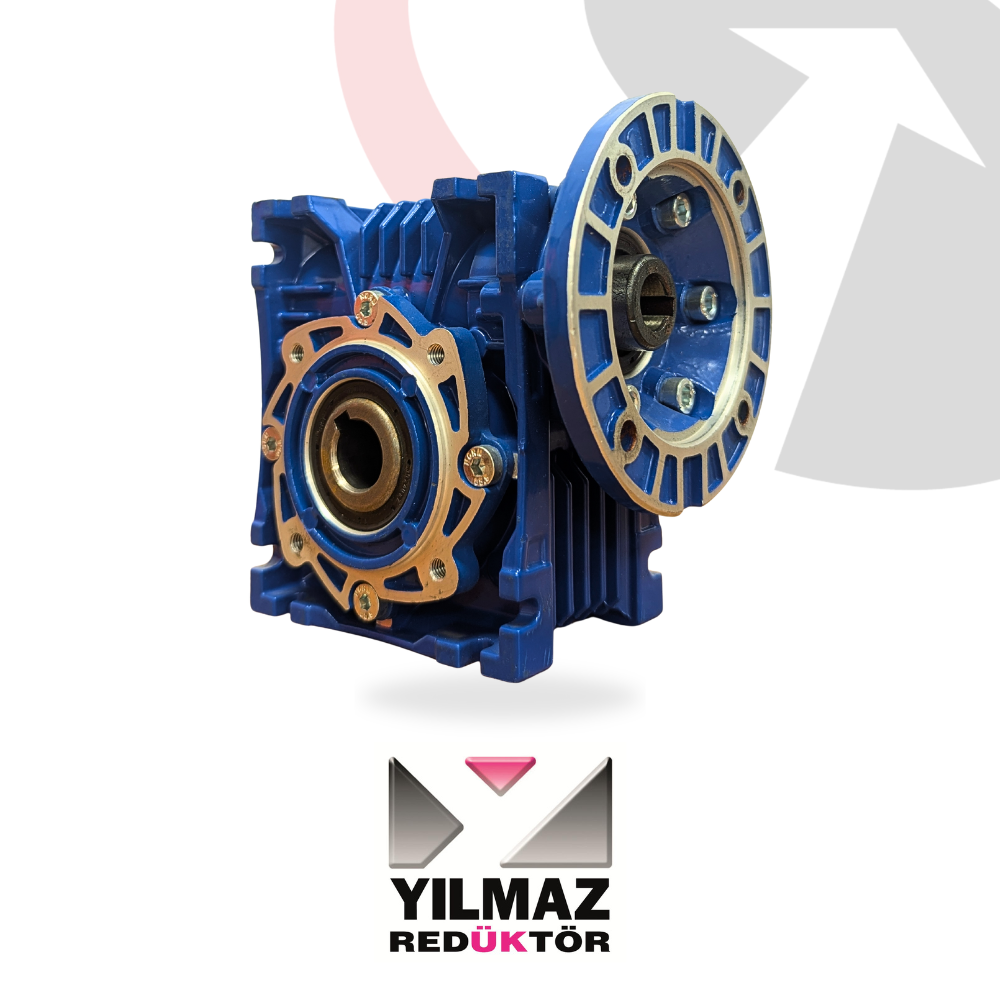

Yilmaz EN030 Worm Gearbox
Motor available on request

Performance

The Yilmaz EN030 worm gearbox provides a compact and cost effective drive solution for general purpose machinery. It operates smoothly and quietly under load, delivering reliable speed reduction and strong torque output in limited space. The worm driven design provides controlled motion, stable transmission and dependable performance across a wide range of drive systems.

Application

Ideal for conveyors, mixers, packaging lines, light process machinery and automation equipment. Suitable for OEM assemblies, retrofit upgrades and bespoke drive configurations where space saving, simple mounting and reliable reduction are required.

Construction

The EN030 features a robust aluminium housing with corrosion protection, a precision machined worm and wheel set, and optimised oil sealing for reduced leakage and long service life. This unit is supplied without a motor and is compatible with IEC motor adapters or custom coupling arrangements.

Key Specifications

• Frame size: EN030
• Input type: IEC compatible
• Reduction ratio range: 5.25 to 1 up to 80 to 1
• Bore size: 14 mm
• Nominal torque: 54 Nm

Additional Specifications

• Right angle worm gearbox configuration
• Multiple mounting options available
• Aluminium housing with corrosion resistance
• Supplied without motor, motors available on request
• Manufactured in Europe by Yilmaz
• UK stock with free mainland same day dispatch

FAQ: Worm Gearboxes Without Motors

What is a worm gearbox?
A worm gearbox is a right angle gear reducer that uses a worm and worm wheel to reduce speed and increase torque. It is ideal for compact machinery where smooth and quiet operation is required.

Can I buy a worm gearbox without a motor?
Yes. We supply motorless worm reducers designed for flexible integration. They are ready for IEC motor coupling or custom mounting and can be matched to existing motors.

What applications use worm gear reducers?
They are commonly used in conveyors, mixers, packaging lines, automation systems and light process machinery. Their compact design suits both OEM builds and retrofit work.

How do I know which size I need?
Frame size is determined by required torque, reduction ratio and mounting layout. We can help specify the correct gearbox for your application.

Do you offer UK stock?
Yes, we hold UK stock of key frame sizes for fast supply, all available with free mainland delivery.
